| Place of Origin: | China |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | NO. |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Product Name: | Pneumatic Radial Diaphramg Valve With Clamp | Materials: | SS316L / 1.4404 |
|---|---|---|---|
| Size: | 3/4'' - 2.5'', DN20 - DN65 | Operation: | Plastic Actuator |
| Connection: | Welding | Gasket: | EPDM + PTFE |
| Conveying Direction: | 3 Outlet | Size Of Clamp: | According To Working Situation |
| High Light: | diaphragm check valve,sanitary sample valve |
||

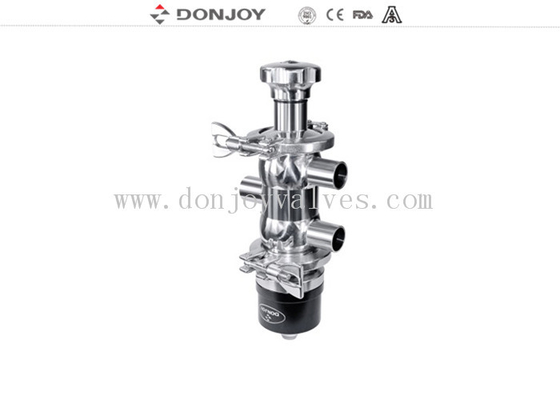

3A / ISO SS316 Pneumatic Diaphragm Valve for fliud regulation
Specifications
|
Product Name: |
Pneumatic Radial Diaphragm Valve for phamacy hygienic process |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM |
|
MaxWorking Pressure: |
6 Bar |
|
|
120 degree C |
|
Availably size: |
3/4''-2.5'', DN20-DN65 |
|
|
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Position of pneumatic: |
On 2 ends |
|
Indicator light: |
Be installed with |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging
Max.Working Temperature
Max temperature : 120 ℃
Available connection
Clamped / welded / threaded / special connection
Seal ring material
Single sillcone gasket
Adhesive PTFE + EPDM
Two pieces PTFE + EPDM
Packaging
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.

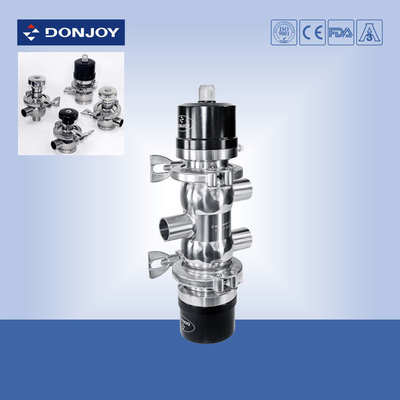

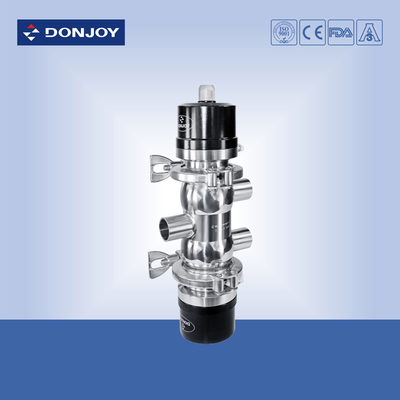

Product display
