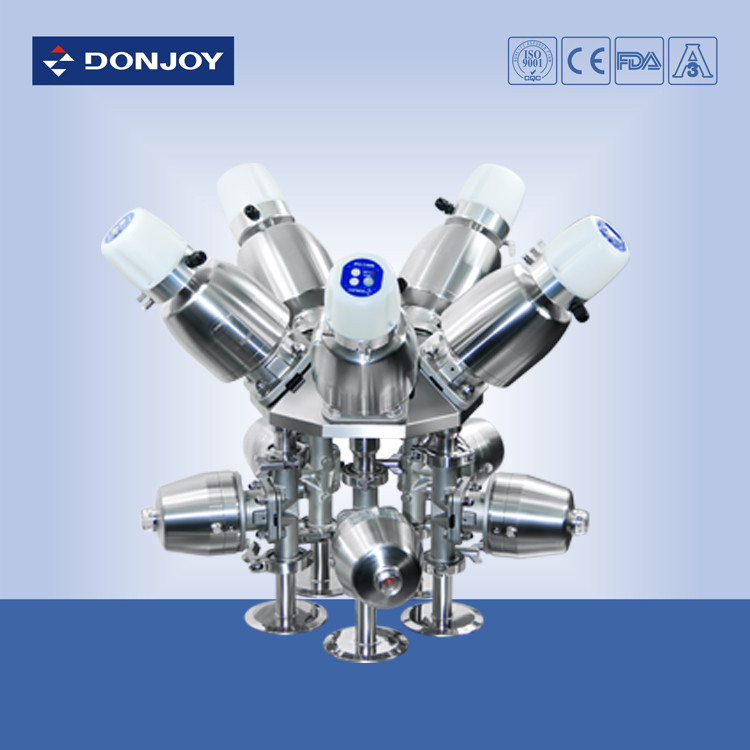

SS sanitary Multiport pneumatic diaphragm valve with C - TOP for pharmaceutical industry

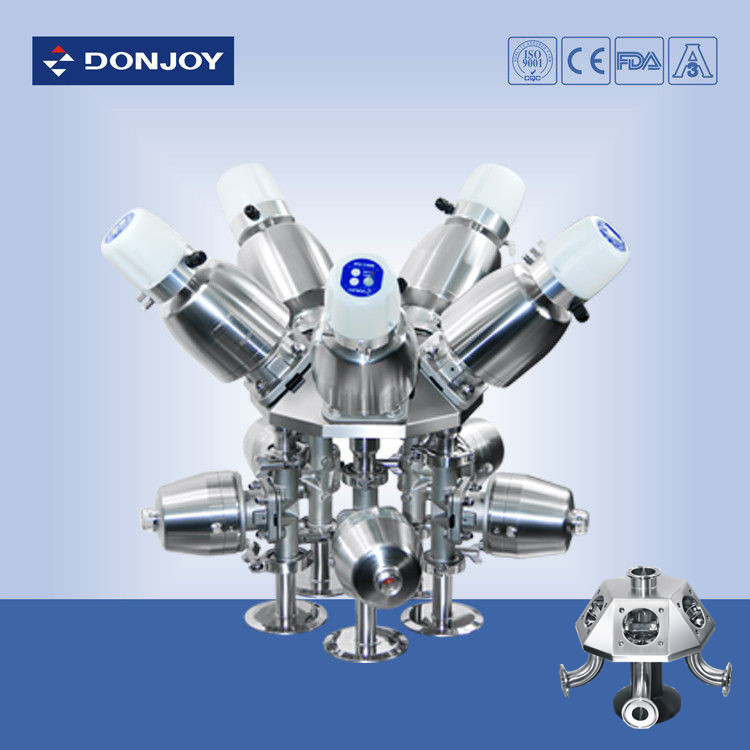

Large Image : SS sanitary Multiport pneumatic diaphragm valve with C - TOP for pharmaceutical industry

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA
Model Number:	12030902

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Product Name:	Multiport Diaphragm Valve With C TOP	Materials:	SS316L / 1.4404
Size:	1" - 3" DN25 - DN80	Operation:	Stainless Steel Actuator
Connection:	Welding	Gasket:	EPDM + PTFE
Structure:	Could Be Installed With Multi C - TOP	Availability:	Multi - Actuator
Highlight:	diaphragm check valve , sanitary sample valve

SS Sanitary Multiport Pneumatic Diaphragm Valve with C-TOP for pharmaceutical industry

Specifications

Product Name:	Sanitary Multiport Pneumatic Diaphragm Valve with C - TOP
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
Max Working Pressure:	10 Bar
Max.WorkingTemperature:	130 degree C
Availably size:	1"-3" DN25-DN80
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Connection of each valve:	Welded combined
Advantage:	Automatic draining and no dead conner

Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner / Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit (C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging

Sealing Material
Single sillcone gasket / Adhesive PTFE + EPDM / Two pieces PTFE + EPDM

Suitable scope
For dairy, food, beverage, pharmacy, cosmetic industries etc.

Control
Smart valve positioner / C-TOP control / position sensor

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

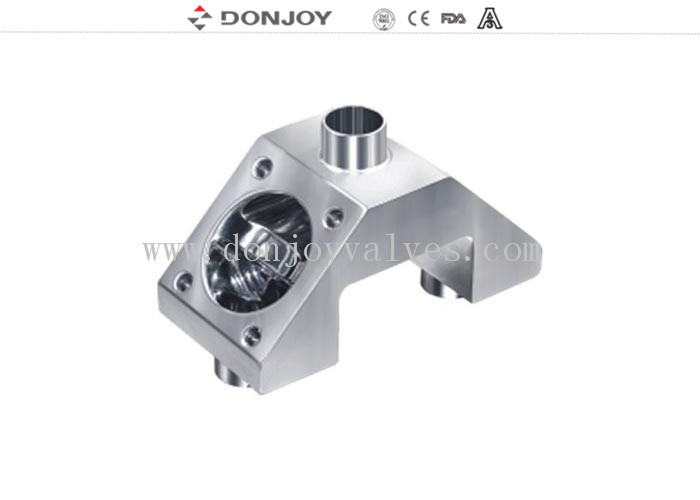

Product display
SS sanitary Multiport pneumatic diaphragm valve with C - TOP for pharmaceutical industry 0
