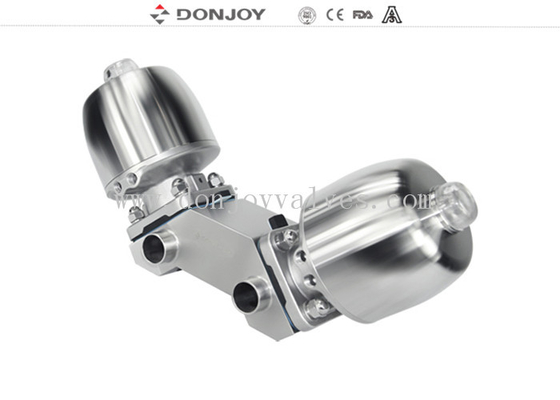

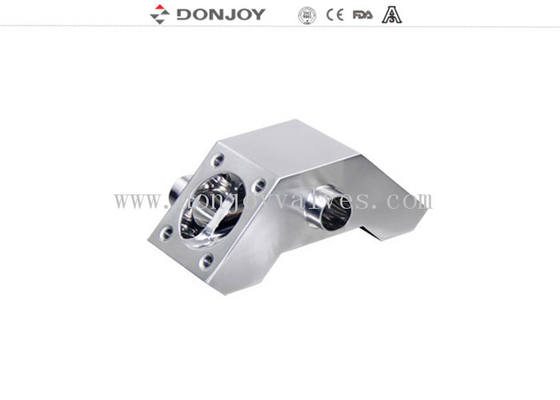

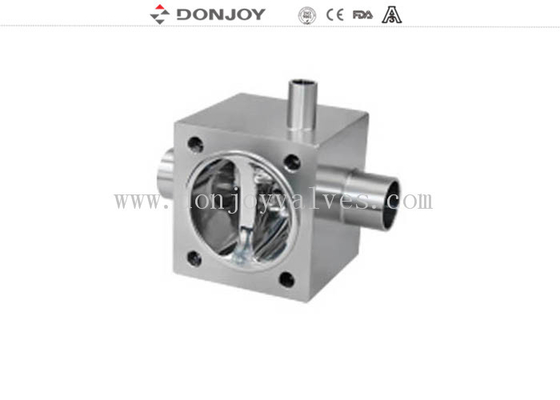

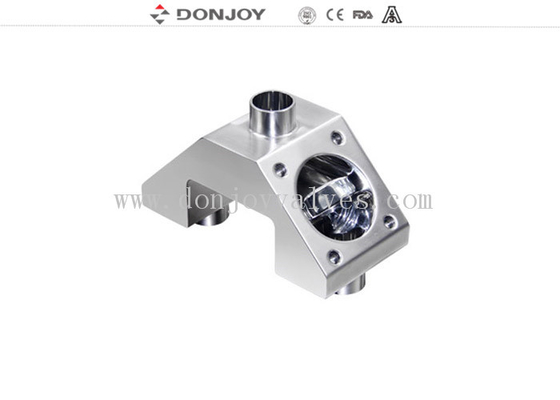

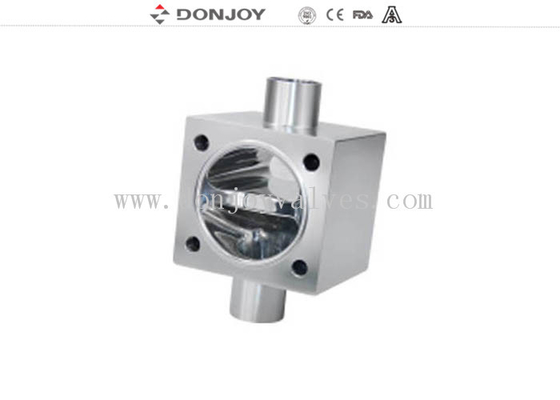

SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow

SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow

    • SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow
    • SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow
    • SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow
    • SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow
    • SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow
  • SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: 12030902

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Product Name: Multiport Pneumatic Diaphragm Valve Materials: SS316L / 1.4404
    Size: 1" - 3" DN25 - DN80 Operation: Stainless Steel Actuator
    Connection: Welding Gasket: EPDM + PTFE
    Feature: Better Sealing Actuator: Double Actuator
    High Light:

    sanitary sample valve

    ,

    3 way diaphragm valve

    SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow


    Specifications

    Product Name:

    SS Sanitary Multiport Pneumatic Diaphragm Valve

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket / Adhesive PTFE+EPDM / Two pieces PTFE+EPDM

    Max Working Pressure:

    10 Bar

    Max.Working Temperature:

    130 degree C

    Availably  size:

    1"-3" DN25-DN80

    Availably connection:

    Clamp/weld/thread/special connection

    Availably standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Feature:

    Aseptic valve body

    Direction of input and output:

    On side way


    Description
    Various configuration of Diaphragm valve
    1.Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
    2.Diaphragm valve with Control Unit(C-Top)
    3.Valve position Regulator
    4.Position Sensor Module
    5.Plastic Handle
    6.Stainless steel handle
    7. Stianless steel acutor
    8. Electric Diaphragm valve
    9. Plastic Acutor
    10. Body: Casting / Forging


    Packaging Details
    Bubble pack for each valve.
    Outside packing are carton or plywood cases.
    Or as per the request of customers.


    Delivery details
    Usually within 20 days after receiving T/T down payment.


    Drawing
    Please check the size form below for detailed information.

    SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow 0

    SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow 1
