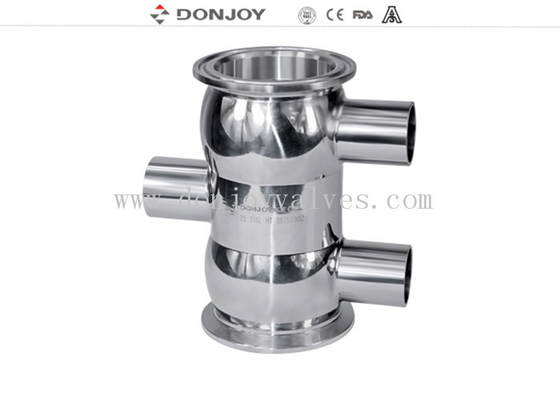

2 Inch SS316 Welding Pneumatic Radial Diaphragm Valve for regulating flow

2 Inch SS316 Welding Pneumatic Radial Diaphragm Valve for regulating flow

    • 2 Inch SS316 Welding Pneumatic Radial Diaphragm Valve for regulating flow
    • 2 Inch SS316 Welding Pneumatic Radial Diaphragm Valve for regulating flow
    • 2 Inch SS316 Welding Pneumatic Radial Diaphragm Valve for regulating flow
  • 2 Inch SS316 Welding Pneumatic Radial Diaphragm Valve for regulating flow

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Pneumatic Radial Diaphragm Valve With Clamp Function: For Conveying Water Etc.
    Actuator Pressure: 5bar To 6bar Gasket Optional: EPDM/ FPM/ PTFE
    Actuator: Single/ Double Acting Valve Body: Tank Bottom Valve Body
    High Light:

    sanitary sample valve

    ,

    3 way diaphragm valve

    2 Inch SS316 Welding Pneumatic Radial Diaphragm Valve for regulating flow​

    Specifications

    Product Name:

    Pneumatic Radial Diaphragm Valve

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

    MaxWorking Pressure:

    6 Bar

    Max.Working Temperature:

    120 degree C

    Availably  size:

    3/4''-2.5'', DN20-DN65

    Availably connection:

    Clamp/weld/thread/special connection


    Availably standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Plastic actuator:

    With indicator light

    Size of clamp:

    According to your valve


    Description
     Various configuration of Diaphragm valve
    1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

    2.      Diaphragm valve with Control Unit(C-Top)
    3.      Valve position Regulator
    4.      Position Sensor Module
    5.      Plastic Handle
    6.      Stainless steel handle
    7.      Stianless steel acutor
    8.      Electric Diaphragm valve
    9.      Plastic Acutor
    10.    Body: Casting / Forging

    Packaging Details
    Bubble pack for each valve.
    Outside packing are carton or plywood cases.
    Or as per the request of customers.

    Delivery details
    Usually within 20 days after receiving T/T down payment.

    Drawing
    Please check the size form below for detailed information.


    2 Inch SS316 Welding Pneumatic Radial Diaphragm Valve for regulating flow 0
