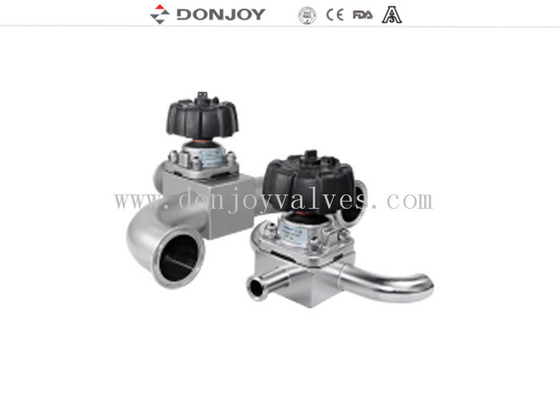

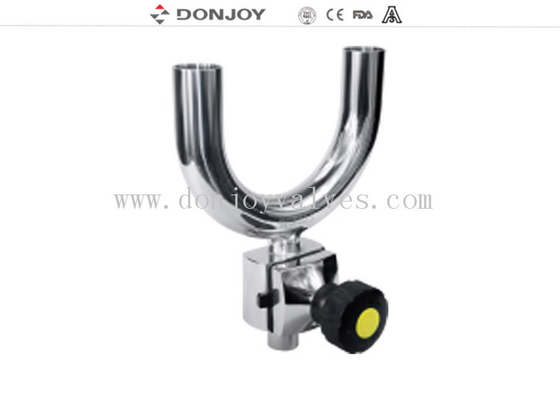

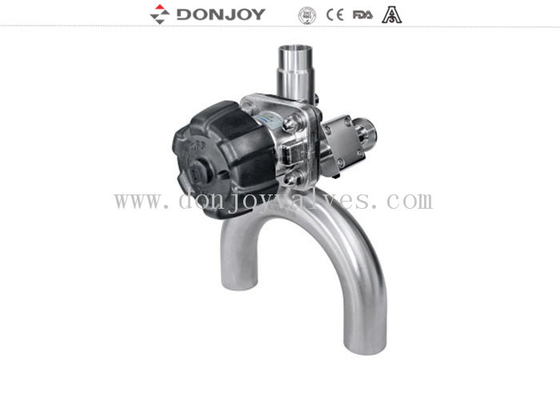

316L SS Manual Regulating Clamp U-C Tee diaphragm valve for mechine processing

316L SS Manual Regulating Clamp U-C Tee diaphragm valve for mechine processing

    • 316L SS Manual Regulating Clamp U-C Tee diaphragm valve for mechine processing
    • 316L SS Manual Regulating Clamp U-C Tee diaphragm valve for mechine processing
    • 316L SS Manual Regulating Clamp U-C Tee diaphragm valve for mechine processing
  • 316L SS Manual Regulating Clamp U-C Tee diaphragm valve for mechine processing

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VGM0S2, NO.UC-H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Product Name: U - C Tee Diaphragm Valve Materials: SS316L / 1.4404
    Size: DN25 - DN100 Operation: Plastic Hand Wheel
    Connection: Clamp/welded Gasket: EPDM + PTFE
    Position Of Diaphragm Valve: On Upper Position Number Of Diaphragm Valve: Be Optional
    High Light:

    diaphragm check valve

    ,

    3 way diaphragm valve

    316 L SS Pneumatic Regulating Clamp U - C Tee diaphragm valve with IL-TOP


    Specifications

    Product Name:

    316 L SS Pneumatic Regulating Clamp U - C Tee diaphragm
    valve with IL-TOP

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces
    PTFE+EPDM

    MaxWorking Pressure:

    10Bar

    Max.WorkingTemperature:

    120 degree C

    Availably  size:

    1''-4'', DN25-DN100

    Availably connection:

    Clamp/welding/thread/special connection

    Availably standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Direction of valve:

    Be upward

    Number of port:

    Tri - directional



    Description
    Various configuration of Diaphragm valve
    1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
    2. Diaphragm valve with Control Unit(C-Top)
    3. Valve position Regulator
    4. Position Sensor Module
    5. Plastic Handle
    6. Stainless steel handle
    7. Stianless steel actuator
    8. Electric Diaphragm valve
    9. Plastic Actuator
    10. Body: Casting / Forging


    Packaging Details
    Bubble pack for each valve.
    Outside packing are carton or plywood cases.
    Or as per the request of customers.


    Delivery details
    Usually within 20 days after receiving T/T down payment.


    Drawing
    Please check the size form below for detailed information.

    316L SS Manual Regulating Clamp U-C Tee diaphragm valve for mechine processing 0
