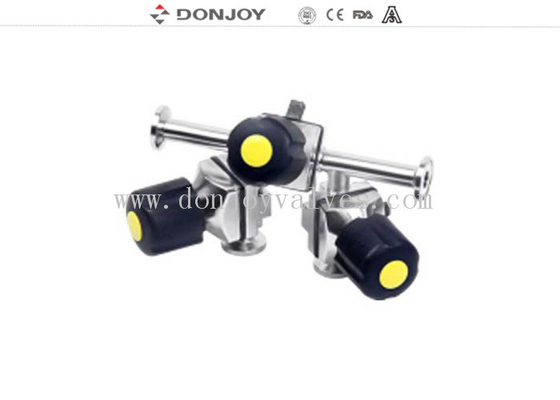

Stainless steel 316L Multiport Phamacy Sanitary Diaphragm Valves with hand wheel of BPE standard

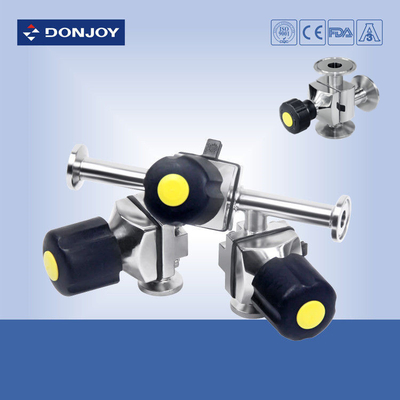

Large Image : Stainless steel 316L Multiport Phamacy Sanitary Diaphragm Valves with hand wheel of BPE standard

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO. MINI-VGM0S2,

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	carton box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Product Name:	Multiport Diaphragm Valve With Plastic Hand Wheel	Operation:	Manual Operation
Connection:	Flange	Double Gasket:	EPDM + PTFE
Hand Wheel Type:	Ss Or Plastic	Feature:	Dead Angle Minimization
Highlight:	sanitary sample valve , 3 way diaphragm valve

Stainless steel 316L Multiport Phamacy Sanitary Diaphragm Valves with hand wheel of BPE standard

Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner / Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit (C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging

Specifications

Product Name:	Multiport phamacy hygienic Diaphragm Valves
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
Max Working Pressure:	8 Bar
Max.Working Temperature:	150 degree C
Available size:	1/4”-3/4”, DN6-DN15
Available connection:	Clamp/weld/thread/special connection
Available standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Available structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Suitable scope:	For processing dairy,food, beverage, pharmacy etc
Valve body craft:	Casting or Forging
Position Sensor:	Optional
Packaging Details:	Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Product drawing

Product actuator

Product body
