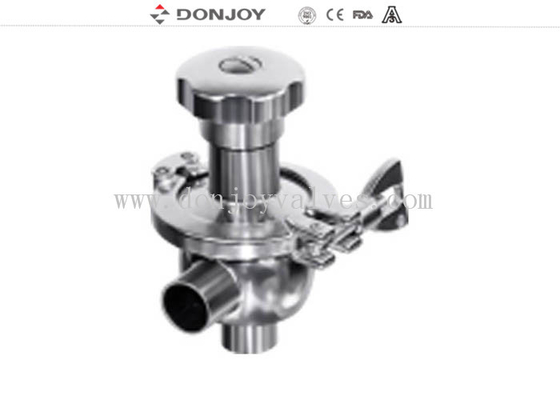

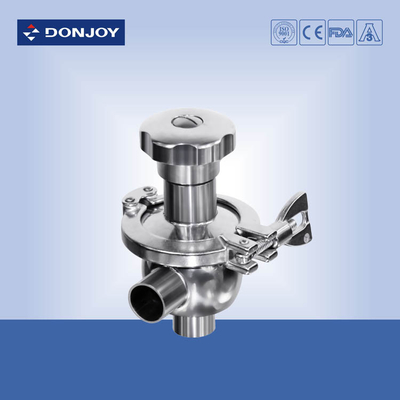

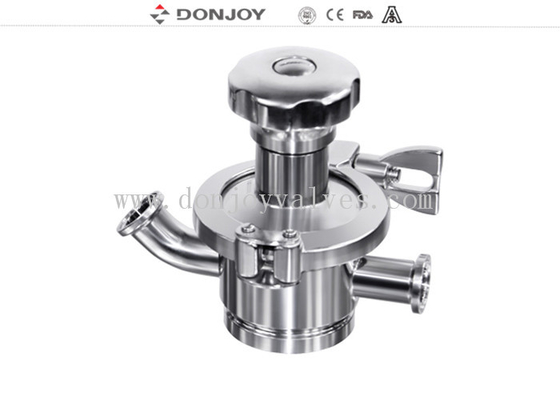

SS316L Manual Radial Diaphragm Valve EPDM PTFE Gasket for fluid control

SS316L Manual Radial Diaphragm Valve EPDM PTFE Gasket for fluid control

    • SS316L Manual Radial Diaphragm Valve EPDM  PTFE Gasket for fluid control
    • SS316L Manual Radial Diaphragm Valve EPDM  PTFE Gasket for fluid control
    • SS316L Manual Radial Diaphragm Valve EPDM  PTFE Gasket for fluid control
    • SS316L Manual Radial Diaphragm Valve EPDM  PTFE Gasket for fluid control
    • SS316L Manual Radial Diaphragm Valve EPDM  PTFE Gasket for fluid control
  • SS316L Manual Radial Diaphragm Valve EPDM  PTFE Gasket for fluid control

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Manual Radial Diaphramg Valve Operation: Stainless Steel Handwheel
    Function: Flow Conveying And Controlling Clamp Nut: Could Be Optional
    Application: Food, Beverage, Cosmetic Etc. Inside Body Finishing: Ra<0.5um
    High Light:

    diaphragm check valve

    ,

    3 way diaphragm valve

    SS316L Manual Radial Diaphragm Valve EPDM PTFE Gasket for fluid control

    Specifications

    Product Name:

    Pneumatic Radial Diaphragm Valve for phamacy
    hygienic process

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces
    PTFE+EPDM

    MaxWorking Pressure:

    6 Bar

    Max.Working Temperature:

    120 degree C

    Availably  size:

    3/4''-2.5'', DN20-DN65

    Availably connection:

    Clamp/weld/thread/special connection

    Availably standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Color of O - ring:

    Black, white and transparent

    Material of clamp nut:

    Stainless steel


    Description

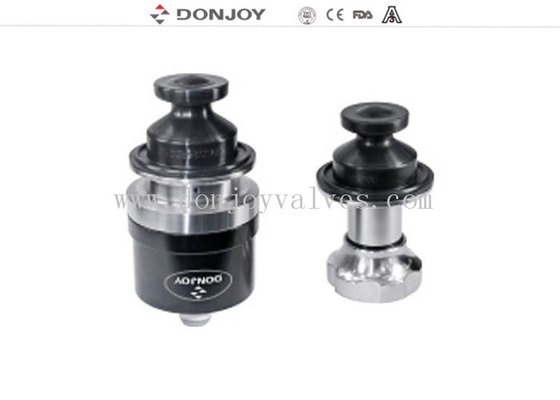

    Various configuration of Diaphragm valve
    1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
    2.      Diaphragm valve with Control Unit(C-Top)
    3.      Valve position Regulator
    4.      Position Sensor Module
    5.      Plastic Handle
    6.      Stainless steel handle
    7.      Stianless steel acutor
    8.      Electric Diaphragm valve
    9.      Plastic Acutor
    10.    Body: Casting / Forging

    Packaging Details
    Bubble pack for each valve.
    Outside packing are carton or plywood cases.
    Or as per the request of customers.

    Delivery details
    Usually within 20 days after receiving T/T down payment.


    Drawing
     Please check the size form below for detailed information.

    SS316L Manual Radial Diaphragm Valve EPDM  PTFE Gasket for fluid control 0

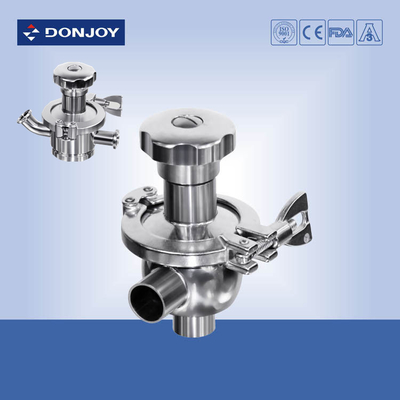

    Product display

    SS316L Manual Radial Diaphragm Valve EPDM  PTFE Gasket for fluid control 1
