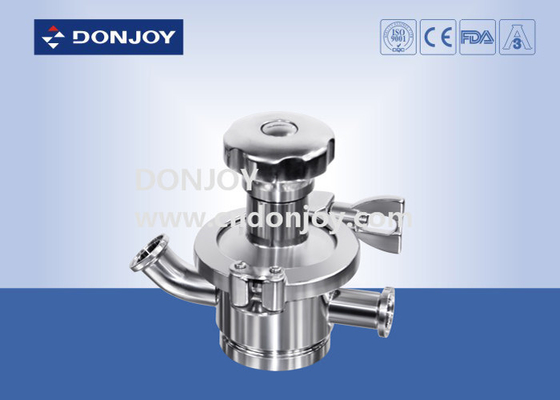

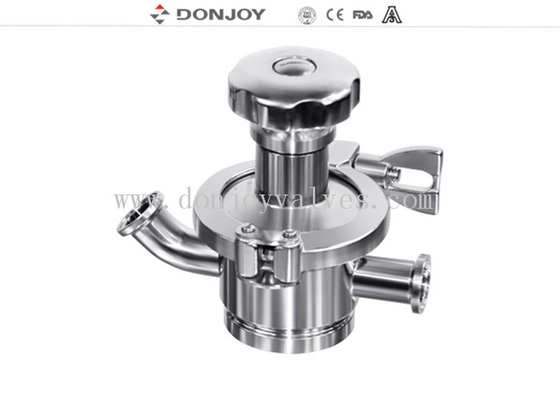

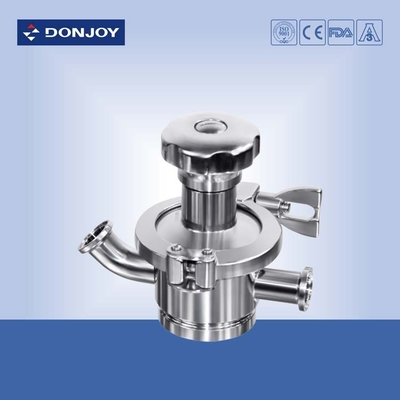

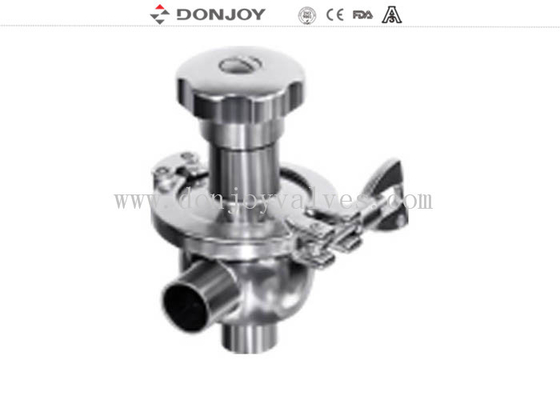

Manual Tank Bottom Sanitary Diaphragm Valve for fluid control

Manual Tank Bottom Sanitary Diaphragm Valve for fluid control

    • Manual Tank Bottom Sanitary Diaphragm Valve  for fluid control
    • Manual Tank Bottom Sanitary Diaphragm Valve  for fluid control
    • Manual Tank Bottom Sanitary Diaphragm Valve  for fluid control
    • Manual Tank Bottom Sanitary Diaphragm Valve  for fluid control
  • Manual Tank Bottom Sanitary Diaphragm Valve  for fluid control

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Manual Tank Bottom Diaphramg Valve Materials: SS316L / 1.4404
    Size: 3/4'' - 2.5'', DN20 - DN65 Operation: Stainless Steel Handwheel
    Gasket: EPDM + PTFE Structure: Tank Bottom
    High Light:

    diaphragm check valve

    ,

    sanitary sample valve

    Manual Tank Bottom Sanitary Diaphragm Valve for fluid control

    Specifications

     Product Name:

     Manual Tank Bottom Diaphragm Valve

     Valve Body Material:

     SS316L


     Seal Material:

     Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces
     PTFE+EPDM

     MaxWorking Pressure:

     6 Bar

     Max.WorkingTemperature:

     120 degree C

     Availably  size:

     3/4''-2.5'', DN20-DN65

     Availably connection:

     Clamp/weld/thread/special connection

     Availably standard:

     3A/BPE/DIN/ISO/IDF

     Operated:

     Manual,Pneumatic

     Availably structure:

     Straight, tee, U-type, tank bottom

     Control:

     Smart valve positioner / C-TOP control / position sensor

     Certificate:

     3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

     Application scope:

     Dairy,food, beverage, pharmacy, cosmetic, etc

     Optional:

     Type of hand wheel and actuator

     Type of clamp:

     Could be selected


    Description
     Various configuration of Diaphragm valve
     1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
    2.      Diaphragm valve with Control Unit(C-Top)
    3.      Valve position Regulator
    4.      Position Sensor Module
    5.      Plastic Handle
    6.      Stainless steel handle
    7.      Stianless steel acutor
    8.      Electric Diaphragm valve
    9.      Plastic Acutor
    10.    Body: Casting / Forging



    Packaging Details
     Bubble pack for each valve.
     Outside packing are carton or plywood cases.
     Or as per the request of customers.



    Delivery details
     Usually within 20 days after receiving T/T down payment.

    Drawing
     Please check the size form below for detailed information.

    Manual Tank Bottom Sanitary Diaphragm Valve  for fluid control 0

    Product display
    Manual Tank Bottom Sanitary Diaphragm Valve  for fluid control 1
