Sanitary grade manual butterfly valve multi - position handle for regulating flow

Sanitary grade manual butterfly valve multi - position handle for regulating flow

    • Sanitary grade manual butterfly valve multi - position handle for regulating flow
    • Sanitary grade manual butterfly valve multi - position handle for regulating flow
    • Sanitary grade manual butterfly valve multi - position handle for regulating flow
  • Sanitary grade manual butterfly valve multi - position handle for regulating flow

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box or wooden box
    Delivery Time: 5-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Powder Butterfly Valve With Ultra Small Torque Materials: 304 / 316L
    Size: 4'' - 12'', DN100 - DN300 Operation: With Multi - Position Handle
    Connection: Welding Packaging: According To Order
    Handle: Multiple And Could Be Optional
    High Light:

    sanitary butterfly valve

    ,

    pneumatic butterfly valve

    Sanitary grade manual butterfly valve multi - position handle for regulating flow



    Specifications

    Product Name:

    Powder butterfly valve

    Valve Body Material:

    SS304/316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    Max Working Pressure:

    5Bar

    Max.Working Temperature:

    120 ℃

    Available  size:

    4''-12'', DN100-DN300

    Available connection:

    Clamp / welding / thread / special connection

    Available standard:

    3A / DIN / SMS / RJT / ISO / IDF

    Operated:

    Manual,Pneumatic, Electric

    Seal ring:

    Imported from Europe

    Options of handle:

    Two-position handle,

    three-position handle,

    four-position pull handle,

    multi-position plastic handle,

    and multi-position stainless steel handle;

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc



    Description

    The butterfly valve is designed and applied in the valves of separate delivery with the function of opening and closing.

    It realizes sealing by using the theory of compressed air.

    This kind of butterfly valve is equipped with ultra-small torque which the standard butterfly valve is not.

    Specification: DN100 - DN300, 4" - 12"

    Operation mode: manual and pneumatic



    Working principle

    To open valve, the seal will lose efficacy. But there will be no leaking.

    The gas in the valve will be sealed once valve is closed, remaining no friction in sealing parts.



    Technical advantages

    To open and close valve, there won't be friction occurred in the sealing part.

    Thus, there's no fear of contamination generated by friction of sealing part.



    Material

    The material connected with others: AISI 316L / 1.4404

    The material in other parts: AISI 304

    Seal ring: EPDM FDA 177.2600

    Internal surface finish: Ra ≤ 0.8μm

    External surface finish: CNC fine machining


    Options

    Gasket: NBR / MVQ / FPM

    Pneumatic actuator of double-acting

    Inductive position sensor

    C - TOP control head

    Position sensor



    Handle selection

    Two-position handle;

    three-position handle;

    four-position pull handle;

    multi-position plastic handle;

    multi-position stainless steel handle;


    Connection

    SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


    Packaging Details

    Bubble pack for each valve.

    Outside packing is carton or plywood cases.

    Or as per the request of customers.



    Delivery details

    Usually within 20 days after receiving T/T down payment.



    Product display

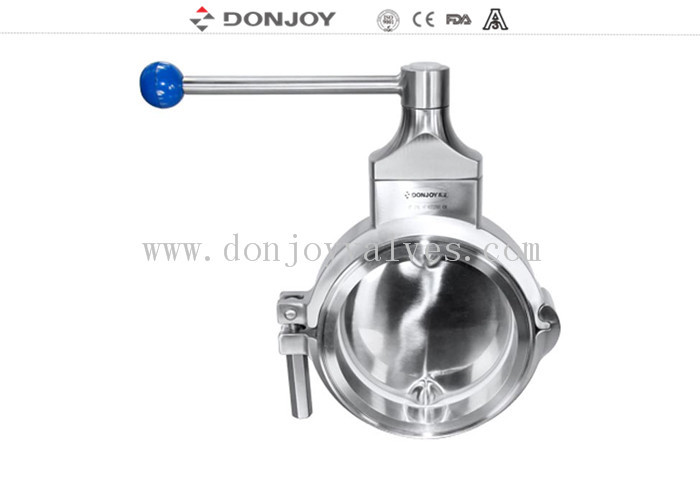

    Sanitary grade manual butterfly valve multi - position handle for regulating flow 0
