Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE/FDA/ISO/3A
Model Number:
NO.ERK111
Contact Us

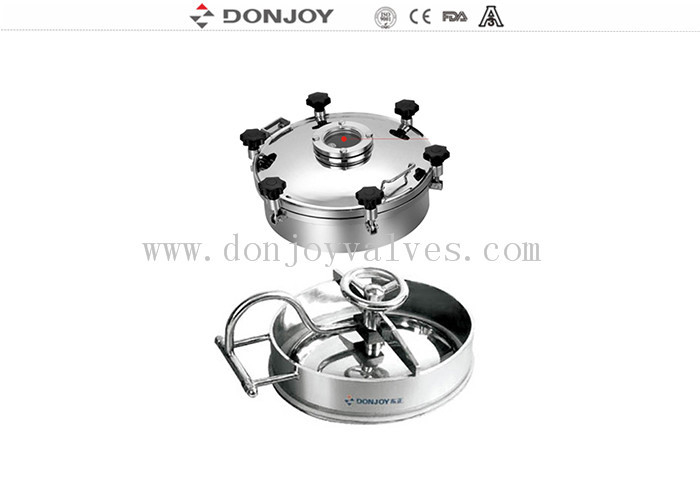

400mm Weled Pressure Food Tank Manhole Cover With Flange Sight Glass
Quick Detail
1. Name: Manhole cover with Sight glass. Stainless steel tank covers. Vessel manway.
2. material: SS304; SS316; AISI304 , AISI316L
3. Surface: polished inside outside
4. Type: square,circular, elliptical, handhole cover
5. Application: dairy, food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel ,tank etc.
6. Fineness: inner and outer fineness of mirror Ra≤0.8μm;
Design and features
Size:DN200*100mm,220*100mm,300*100mm,450*150mm,500*120mm,600*150mm,800*1500mm, Or customized
Type: With DN80,DN100,DN125,DN150 Flange sight Glass
Gasket: EPDM,NBR,SILICONE,FPM
HEIGHT:100mm,12mm,150mm or customized
Working Pressure:2-5Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm,320Grit,
Handle: Plastic, Stainless Steel
Specification
|
|
Glass Pressure Manhole Cover,500mm Mayway, SS304 and 316L use for the top tank |
|
Material: |
AISI304, AISI316L |
|
Size: |
DN200*100mm,220*100mm,300*100mm,450*150mm,500*120mm |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Flange |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Application:
Manhole cover with pressure is mainly used for pressure vessel in the field of food,beverage,chemical,etc
Product drawing
FAQ
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and outmatt side.If your have requirement in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have reqruirement, we also can according it to custom.
4.Can you do as specifize size and print own logo on it ?
Answer: Yes, We support specifications cutomize and personalized customization
5. Can we add the sight glass on the manhole Cover
Answer: Yes. Sight glass with light or wipper also ok.
If you need more information or catalogues,please contact us freely.
Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover
