DONJOY 300mm Round manhole Cover With Pressure Welded To The Tank

DONJOY 300mm Round manhole Cover With Pressure Welded To The Tank

heavy duty manhole covers

internal manhole covers

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.ERK111

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
Dimension:
200MM-800MM
Stanadard:
DIN,3A,SMS,ISO
Connection:
Weled, Flange
Polished:
Mirror, Matt
Height:
100mm,150mm,120mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton, Wooden Case
Payment Terms
T/T,L/C, Credit Card
Supply Ability
100pcs/Day
Product Description

DONJOY 300mm Round manhole Cover With Pressure Welded To The Tank


Quick Detail
Manhole Cover,Manway
Demission:DN200*100mm,220*100mm,300*100mm,450*150mm,500*120mm,600*150mm,800*1500mm, Or customized
Height:100mm,12mm,150mm,300mm
Type: Round pressure
Handle: Plasti wheelc, Stainless Steel wheel



Specificati

Product Name:

300mm Round  manhole Cover with pressure, 150mm

height,Welded to the tank

Material:

AISI304, AISI316L

Size:

200-800

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded, Flange

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste

water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Technical Information:
Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
Working Pressure:2-5Bar
Fineness: inner and outer fineness of mirror Ra≤0.8μm,inner and outer mechanical polish and electrical polish Ra 0.2μm,external surface can be gross polished or sub-gross polished.
Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel ,tank etc


Question:
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and outmatt side.If your have requirement in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have reqruirement, we also can according it to custom.
4.Can you do as specifize size and print own logo on it ?
Answer: Yes, We support specifications cutomize and personalized customization If you need more information or catalogues,please contact us freely.


Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover


Product display

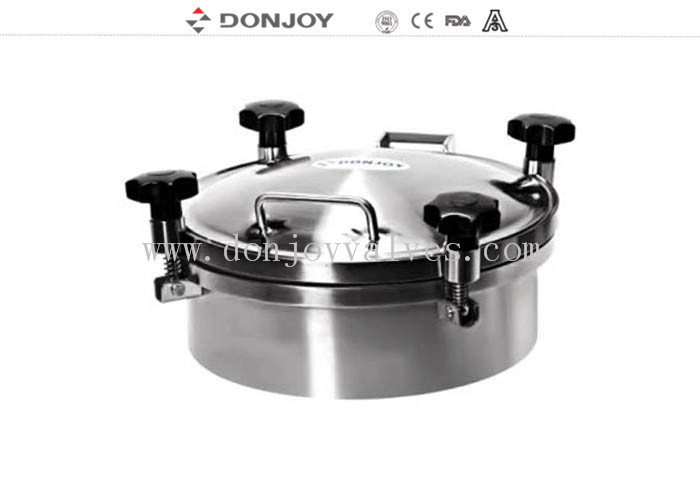

DONJOY 300mm Round manhole Cover With Pressure Welded To The Tank 0
