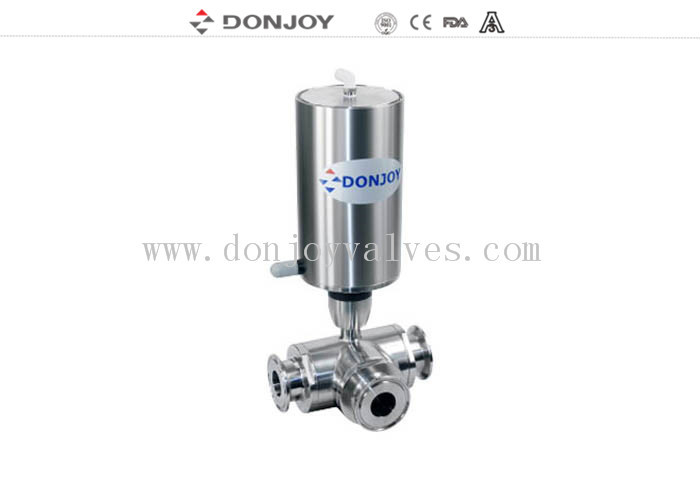

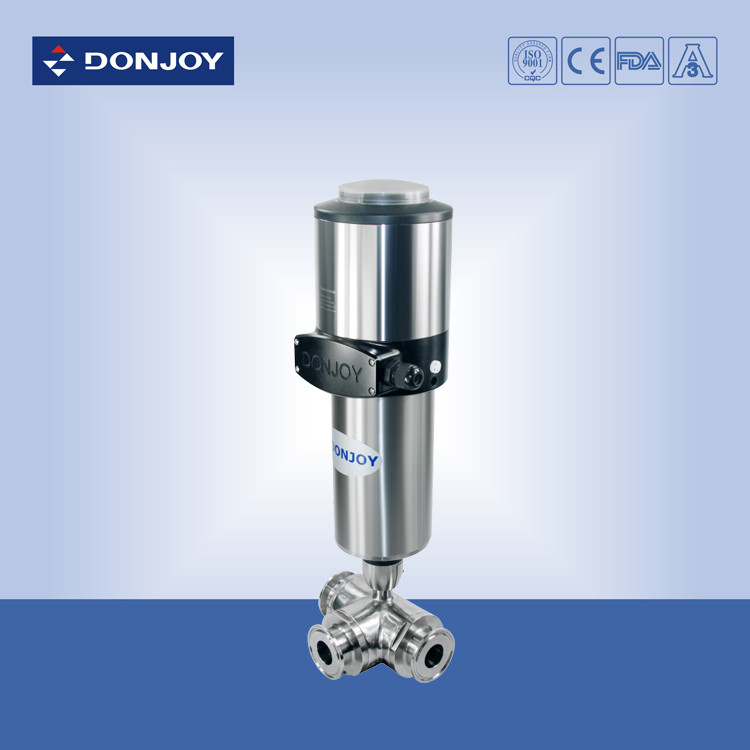

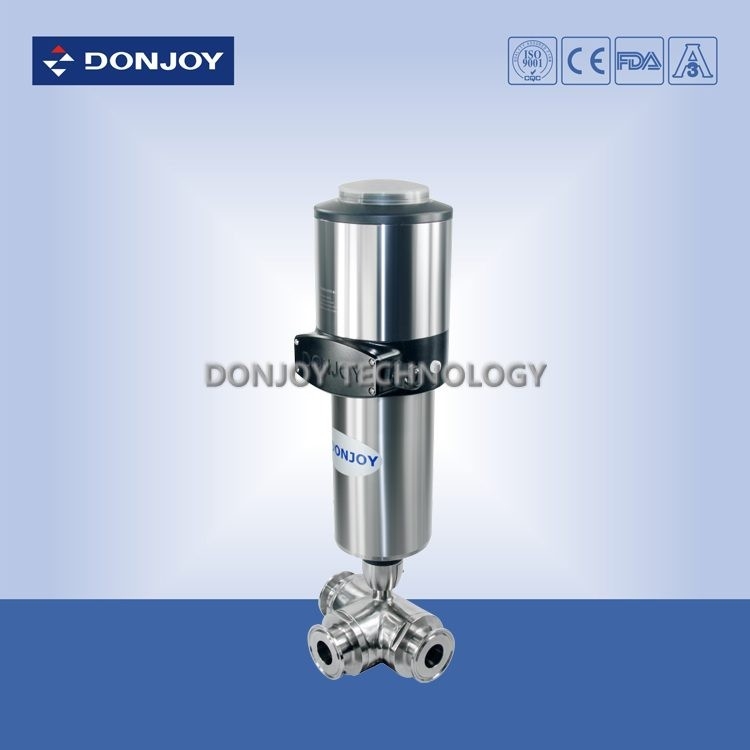

Pnuematic three link Sanitary Ball Valve with C-TOP / Positioner DC 24V , DN50

Pnuematic three link Sanitary Ball Valve with C-TOP / Positioner DC 24V , DN50

    • Pnuematic three link Sanitary Ball Valve with C-TOP / Positioner DC 24V , DN50
    • Pnuematic three link Sanitary Ball Valve with C-TOP / Positioner DC 24V , DN50
    • Pnuematic three link Sanitary Ball Valve with C-TOP / Positioner DC 24V , DN50
    • Pnuematic three link Sanitary Ball Valve with C-TOP / Positioner DC 24V , DN50
  • Pnuematic three link Sanitary Ball Valve with C-TOP / Positioner DC 24V , DN50

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQD100Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
    Operation: Pneumatic, Control Head,Manual Media: 304/316L
    Connection: Welded, Clamped, Thread, Flange Port: 3 Way
    High Light:

    electric ball valve

    ,

    stainless steel ball valve

    Pnuematic three link Sanitary Ball Valve with C-TOP / Positioner DC 24V , DN50



    Detail:

    Manual Ball Valve, Pneumatica  ball valve, C-top Pneumatica ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve, T type/L type

    Connection: Clamped, Thread, Welding,Flange

    Standard: DIN,3A,SMS,ISO,IDF, RJT..

    Materials: AISI304, SUS316L

    Type of valves: Directly Ball Valve, Three piece ball valve, Three way ball valve

    Ball : T port, L Port



    Specification

    Product Name: Pnuematic three link ball valve with C-TOP/Positioner,DC 24V ,DN50
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Max. Working Temperature: 120 degree C
    Availably size: DN25-DN100 or 1" - 4"
    Availably connection: Weld,Clamp,Thread, Flange
    Availably standard: DIN,SMS,3A
    Ball Type: Directly
    Operated: Manual,Pneumatic,Electric,control Head
    Certificate: FDA,CE,3A,ISO



    Applications:

     It is widely used in beverage, brewing, oil refinery, cosmetic, chemical Industrial



    Design and Feature



    Free of Maintenances

    compact and portable

    small operating torque

    gasket complies with PTFE FDA 177.2600

    Hand lever can be installed on the side of the valve body, no matter of the flow direction

    It can be installed with pneumatic and electrick acuators.

    With Cleaning and drainage port



    Delivery time: About 7 days for the samll quantity. And 15-20 days for the mass quantity



    Term of conditions: EXW, FOB NINGBO/SHANGHAI, CIF,CFR



    Payments Term:  T/T,L/C, Western Union.
