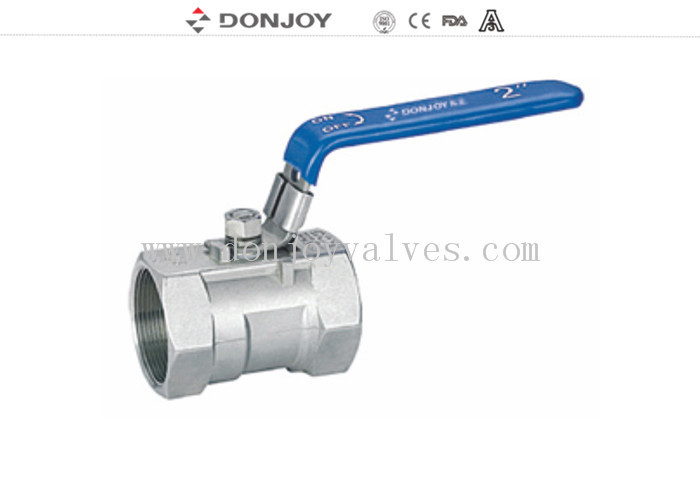

One Peice Sanitary Ball valve With Female Thread Connection

One Peice Sanitary Ball valve With Female Thread Connection

    • One Peice Sanitary Ball valve With  Female Thread Connection
    • One Peice Sanitary Ball valve With  Female Thread Connection
  • One Peice Sanitary Ball valve With  Female Thread Connection

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQD100Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: One Piece Industrial Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
    Operation: Manual, Electric, Pneumatic Actuator Media: 304/316L
    Connection: Welded, Clamped, Thread,DIN,SMS Nominal Pressure: Pn16-Pn64
    High Light:

    electric ball valve

    ,

    stainless steel ball valve

    One Peice Sanitary Ball valve With Female Thread Connection



    Detail:

    one piece ball valve

    Connection: Clamped, Thread, Welding,DIN, SMS

    Standard: DIN,3A,SMS,ISO,IDF, RJT..

    Channel:straight through type



    Specification

    Product Name: Stainless steel One Peices industrial Ball valve With Female Thread Connection
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Working Temperature: -40-180 degree
    Availably size: DN8-DN100, 1/2"-4"
    Availably connection: Weld,Clamp,FemaleThread
    Availably standard: DIN,SMS,3A
    Channel straight through type
    Operated: Manual,Pneumatic,Electric,
    Certificate: DIN, SMS 3A



    Applications:

    This series ball valve is applicable for petroleum, food beverage, cosmestic industries.

    This kind of ball valve can work by pneumatic actuator operation or manual operation.

    Structure: one-piece, two-piece, three-piece, flange, etc.



    Technical Feature

    Nominal pressure: PN1.6, 2.5, 4.0, 6.4MPa

    Strength testing pressure: PT2.4, 3.8, 6.0, 9.6 MPa

    Seat testing pressure(low pressure): 0.6MPa

    Applicable temperature: -40 C to 180 C



    Competitive Advantage:

    Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises,  the Trovincial Science  R & D Center, AAA Credit Enterprises.

    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

    One Peice Sanitary Ball valve With  Female Thread Connection 0One Peice Sanitary Ball valve With  Female Thread Connection 1One Peice Sanitary Ball valve With  Female Thread Connection 2
