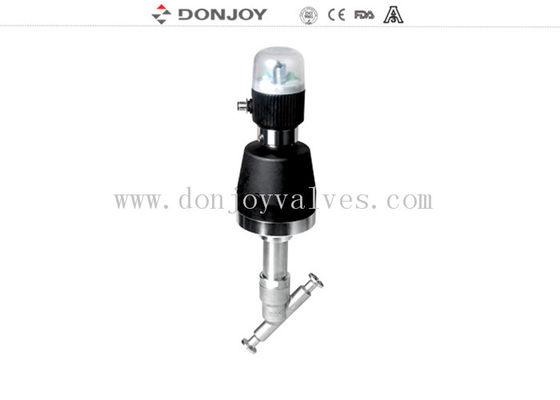

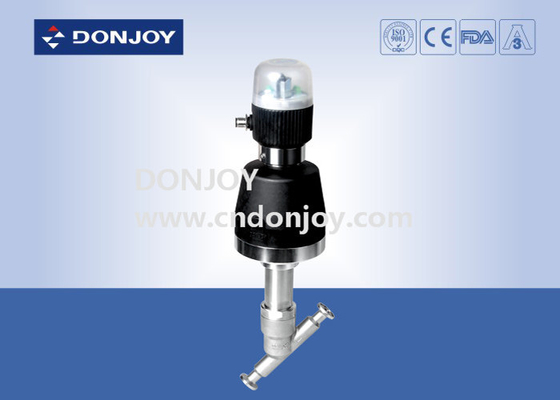

Plastic Pneuamtic Angle Seat Valve with Tri clamp end According ASME BPE

Plastic Pneuamtic Angle Seat Valve with Tri clamp end According ASME BPE

angle body valve

angle seated valves

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VQD100Q2

Contact Us

Request A Quote
Product Details
Product Name:
Angle Seat Valve
Size Of Panel:
DN10-DN80,1/2"-3"
Operation:
Stainless Steel Pneumatic, Control Head
Material:
316L
Connection:
Welding
Gasket:
EPDM
Origin:
Wenzhou,China
External Surface Finish:
Mirror Polish
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Plastic Pneuamtic Angle Seat Valve with Tri clamp end According ASME BPE



specifications:

Product Name: stainless steel Acuator Angle Seat Valve,SS316L Steam and water Valve with welding
Valve Body Material: SS304,SS316L
Seal Material: EPDM
Working Pressure: 8 Bar, 10Bar(option).
Max. Working Temperature: 120 degree ,180Degree(Option)
Availably size: DN10-DN80,1/2"-3"
Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
Certificate: FDA,CE,ISO



Detail:

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

3. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.

4. Temperature: maximum temperature up to 200 (depending on the seal type)



Operation Options for Seat Valve

1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice: Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor



Applications:

Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.



Operationg Principles

1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.



2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.



Plastic Pneuamtic  Angle Seat Valve with Tri clamp end According ASME BPE 0



Plastic Pneuamtic  Angle Seat Valve with Tri clamp end According ASME BPE 1

Tag : Sanitary valves, Donjoy Angle seat valve, Control valves
