Air / Spring Tank Bottom Valve SS316L Medium Pressure 45 Elbow Type

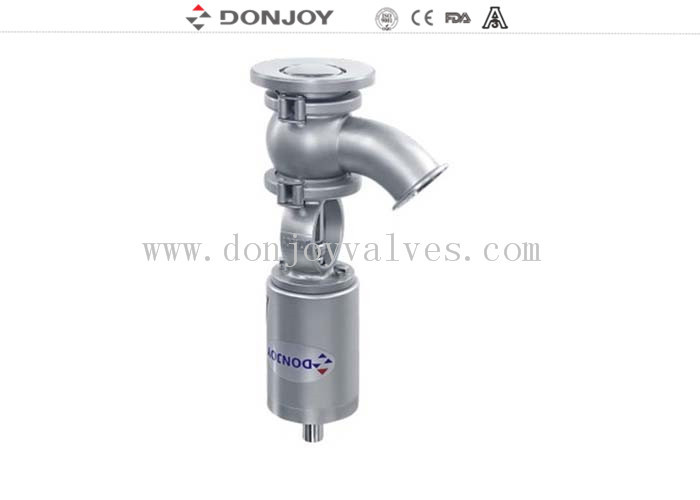

Large Image : Air / Spring Tank Bottom Valve SS316L Medium Pressure 45 Elbow Type

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO
Model Number:	NO.VKD210S1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	Carton, Wooden Case
Delivery Time:	accoding to order
Payment Terms:	T/T,L/C, Credit Card
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Product Name:	Tank Bottom Valve	Operation:	Air / Spring
Material:	SS304	Size:	1"-4"; DN25- DN100
Pressure:	Medium Pressure	Media:	Food, Beer, Beverage, Dairy Etc.
Highlight:	flush bottom tank valve , single seat valve

Air / Spring Tank Bottom Valve SS316L Medium Pressure 45 Elbow Type

Operation principle
1. Operated by Air/Spring, Air / Air
2. Compressed air push shaft to open and close valve
3. Valve structure: Valve seat opens construction inside so that it can avoid pushing when pipeline is over pressure
4. Parts in contact with the products: AISI 316L,AISI 304
5. Other parts: AISI 304
6. Gaskets (standard): EPDM according to FDA 177.2600
7. Internal surface finish: Ra≤0.8μm
8. External surface finish: Mirror polish

Description

Product Name:	SS304 stainless steel sanitary pneumatic tank bottom seat valve 45 elbow type for Food and beverage industrial
Valve Body Material:	SS316L
Seal Material:	NBR or FPM
Working Pressure:	10 Bar / 145PSI
Max.Working Temperature:	-10℃to +120℃(EPDM)14°F 248° F+140(SPI, max. 30min)248°F
Availabl size:	1"-4" DN25-DN100
Available connection:	DIN, Clamp, SMS, RJT, IDF...Flange
Operated:	Air/Spring, Air / Air
Available structure:	Flange type, 90℃ elbow type
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food processing, beverage, pharmacy, cosmetic, etc
Feature:	Dead angle better, better circulation ability.
Design:	Dead conner minimized design

Design and features
1. 3A sanitary design
2. Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing
8. Easy disassembly by loosening the clamp
9. Connections: clamp

Certificate
Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.

Application scope:
Dairy, food, beverage,cosmetics, chemical,.etc.

Packging details:
Bubble pack for each valve, outside packing are carton or plywood cases. Or as per the request of customer.

Delivery time:
Usually within 20days after T/T down payments.

Product display

Air / Spring Tank Bottom Valve SS316L Medium Pressure 45 Elbow Type 0
