DN50 Pneumatic Tank Bottom Valve High Performance With 90° Elbow

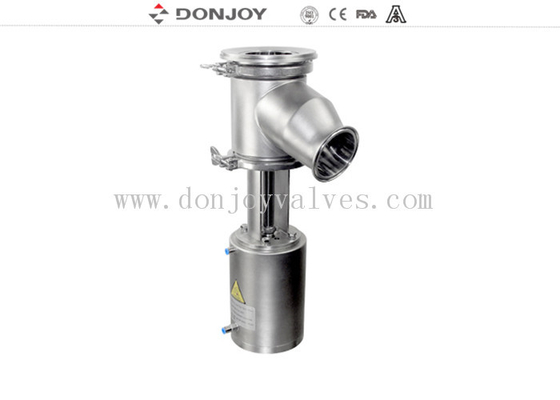

Large Image : DN50 Pneumatic Tank Bottom Valve High Performance With 90° Elbow

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO
Model Number:	NO.VKD410Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	Carton, Wooden Case
Delivery Time:	accoding to order
Payment Terms:	T/T,L/C, Credit Card
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Product Name:	Tank Bottom Valve	Power:	Pneumatic
Material:	SS304/316	Size:	DN30
Pressure:	Medium Pressure	Media:	Food, Beer, Beverage, Dairy Etc.
Internal Surface Finish:	Ra≤0.8μm	Origin:	Wenzhou,China
Highlight:	flush bottom valves , single seat valve

DN50 Pneumatic Tank Bottom Valve High Performance With 90° Elbow

Options
1. Pneumatic
2. Steam sterilized(if shaft sterilization is required).
3. Gaskets: NBR or FPM
4. Connections: DIN, Clamp, SMS, RJT, IDF...Flange
5. Double and single acting actuator
6. Air / Spring, Air / Air

Description

Product Name:	DN50 Stainless steel pneumatic tank bottom seat valve,discharge valve with 90°elbow
Valve Body Material:	SS316L/SS304
Seal Material:	NBR or FPM
Working Pressure:	10 Bar / 145PSI
Max.Working Temperature:	-10℃to +120℃(EPDM)14°F 248° F+140(SPI, max. 30min) 248°F
Available size:	1"-4" DN25-DN100
Available connection:	DIN, Clamp, SMS, RJT, IDF...Flange
Operated:	Air/Spring, Air / Air
Available structure:	Flange type, 90℃ elbow type
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food processing, beverage, pharmacy, cosmetic, etc
Feature:	Suitable for good mobility medium
Design:	Dead conner minimized design

Applications
The tank bottom seat valve is a pneumatically operated single seat valve, assembled at the bottom of tank, used in diary,food processing, beverage, pharmaceutical and fine chemical industries.

Certificate
Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforces ISO9001-2008 management system.

Target of competition
Donjoy ‘s vision is to be become a leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.

Application scope:
Dairy, food, beverage, cosmetics, chemical,.etc.

Packaging details:
Bubble pack for each valve, outside packing is carton or plywood cases. Or as per the request of customer.

Delivery time:
Usually within 20days after T/T down payments.

Technical data

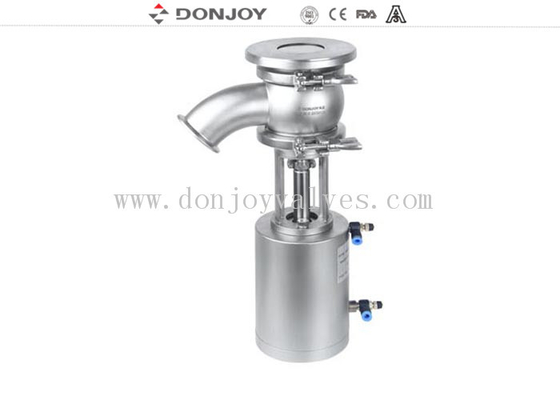

DN50 Pneumatic Tank Bottom Valve High Performance With 90° Elbow 0

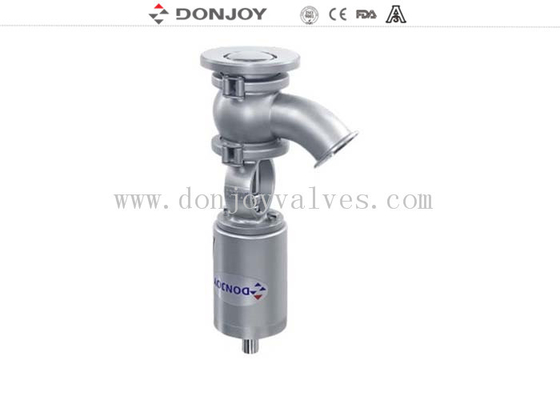

DN50 Pneumatic Tank Bottom Valve High Performance With 90° Elbow 1

DN50 Pneumatic Tank Bottom Valve High Performance With 90° Elbow 2
