Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE/FDA/ISO
Contact Us

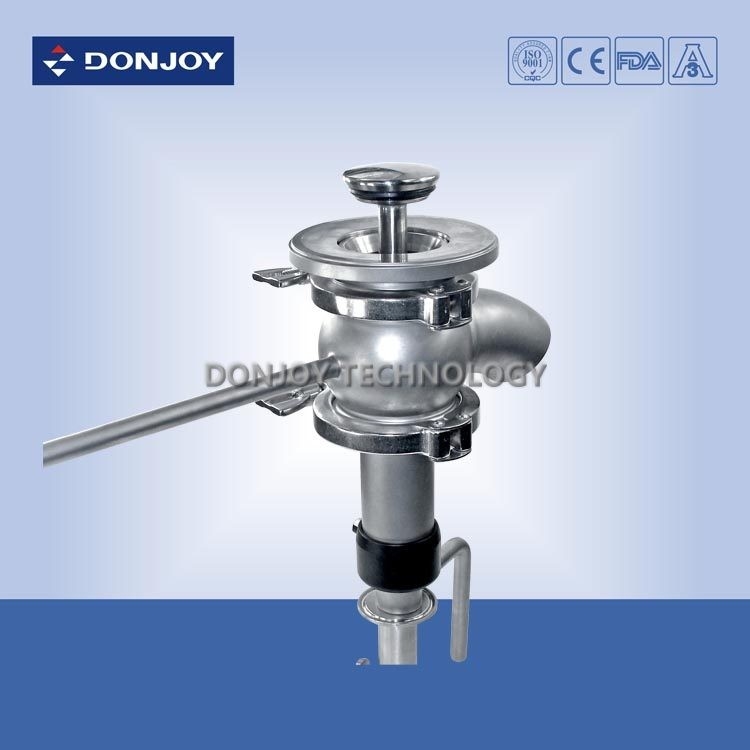

2" DONJOY stainless steel Manual tank bottom seat valve 20 Type
Options
1. Manual
2. Steam sterilized(if shaft sterilisation is required).
3. C-top control unit
4. Internal surface finish: Ra ≤0.5μm
5. Gaskets: NBR or FPM
6. Connections: DIN, Clamp, SMS, RJT, IDF...Flange
7. Double and single acting actuator
8. Air / Spring, Air / Air
Description
Product Name: |
2“Stainless steel tank bottom seat valve/ tank bottom |
Valve Body Material: |
SS316L |
Seal Material: |
NBR or FPM |
Working Pressure: |
10 Bar / 145PSI |
Max.Working Temperature: |
-10℃to +120℃(EPDM)14°F 248° F+140(SPI, max. 30min)248°F |
Available size: |
1"-4" DN25-DN100 |
Available connection: |
DIN, Clamp, SMS, RJT, IDF...Flange |
Operated: |
Air/Spring, Air / Air |
Available structure: |
Flange type, 90℃ elbow type |
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Technical specifications
1.Size: DN25-DN100 1”-4”
2.Working temperature: -10℃to +120℃ (EPDM)14°F 248° F+140(SPI, max. 30min) 248°F
3.Max. Working pressure: 10bar / 145PSI
4.Compressed air pressure: 6-8bar / 87-116PSI
5.Air supply connections: G1/8” (BSP)
Operating principle
Operated by Air/Spring, Air/Air
Compressed air push shaft to open and close valve
Valve structure: Valve seat opens con struction indise so that it can avoid pushing when pipeline is over pressure
.
Target of competition
Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.
Application scope:
Dairy, food, beverage,cosmetics, chemical,.etc.
Packging details:
Bubble pack for each valve, outside packing are carton or plywood cases. Or as per the request of customer.
Delivery time:
Usually within 20days after T/T down payments.

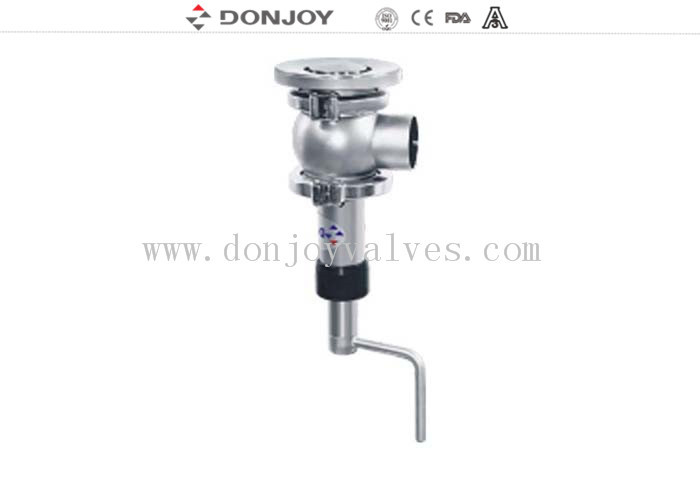

Product display
Tag : Manual valve, Pneumatic Valve, Bottom valve
