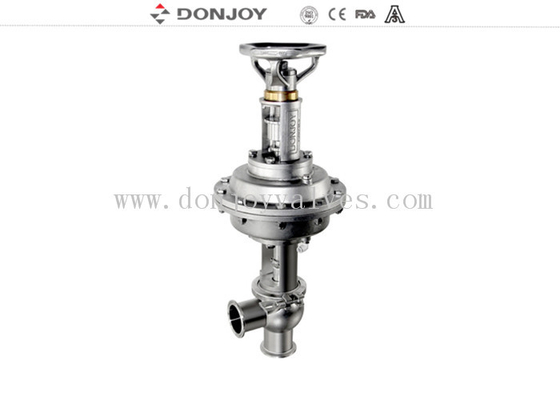

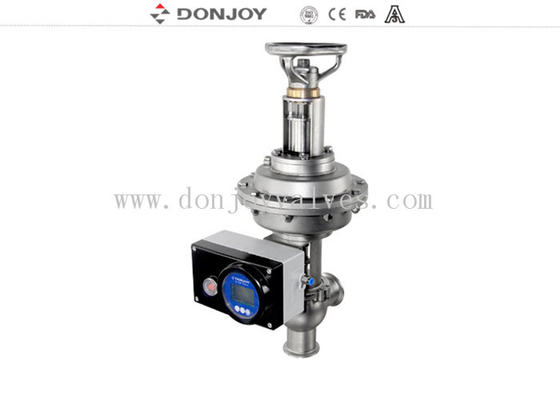

1'' - 4'' diaphragm Reversing Seat Valve with pneumatic and manual integrated

1'' - 4'' diaphragm Reversing Seat Valve with pneumatic and manual integrated

    • 1'' - 4'' diaphragm Reversing Seat Valve with pneumatic and manual integrated
    • 1'' - 4'' diaphragm Reversing Seat Valve with pneumatic and manual integrated
  • 1'' - 4'' diaphragm Reversing Seat Valve with pneumatic and manual integrated

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $200 - 1,200 / Piece
    Packaging Details: carton box
    Delivery Time: according to order
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Material: SS304 / 316
    High Light:

    ball valve diaphragm

    ,

    diaphragm actuator valve

    1'' - 4'' diaphragm Reversing Seat Valve with pneumatic and manual integrated


    Tag
    diaphragm Reversing Seat Valve with pneumatic and manual integrated seat valve with pneumatic and manual integrated
    diaphragm Reversing Seat Valve

    Specification

    Product Name

    Sanitary diaphragm Reversing Seat Valve with pneumatic and manual integrated

    Material of valve body

    SS304 / 316L

    Material of seal ring

    EPDM

    Max. working pressure

    20 bar

    Max. working temperature

    130°C

    Size

    DN25 - 100 or 1" - 4"

    Connection

    Threaded, welded, clamped

    Standard

    DIN, SMS, RJT, 3A

    Operating mode

    Pneumatic and manual integrated

    Body seat

    Single seat

    Body connection

    Clamp connection

    Body type

    30type,20type

    Certification

    FDA, CE, ISO

    Operating theory

    To compress air to push shaft to position opening or closing of valve

    Classification

    Asceptic reversing valve, jacked insulation reversing valve, double stop pneumatic reversing valve etc.


    Design features
    Diaphragm pneumatic reversing valve is equipped with all the function which standard globe valve is equipped with.



    Technical features
    It could bear higher pressure; shorter height of valve; could resist water hammer and positioner could be installed on side way to realize automatic flow regulation.


    Feature
    The material connected with others: AISI 316L / 1.4404
    The material in other part: AISI 304
    Seal ring: EPDM FDA 177.2600
    Inernal surface finish: Ra ≤ 0.8μm
    External surface finish: CNC fine machining


    Options
    Gasket: NBR / MVQ / FPM
    Pneumatic actuator of double acting
    Inductive position sensor
    C - TOP control head
    Position sensor
    Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


    Product drawings
    1'' - 4'' diaphragm Reversing Seat Valve with pneumatic and manual integrated 0
