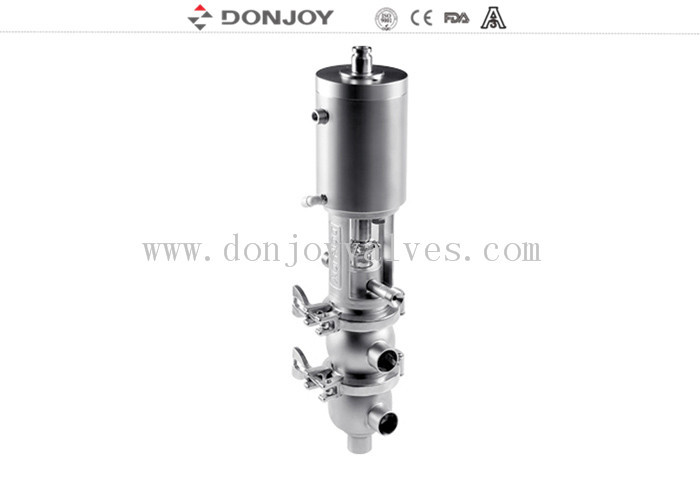

SS316L sanitary pneumatic reversing valve of double seats for fluid conveying

Large Image : SS316L sanitary pneumatic reversing valve of double seats for fluid conveying

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VHX103-111

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	carton box
Delivery Time:	according to order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Material:	SS304/316	Media:	Water Etc.
Operate Mode:	Pneumatic	Size:	DN25 - DN100 Or 1" - 4"
Pressure:	Medium Pressure	Structure:	With Double Stop Regulator
Product Name:	Sanitary Reversing Valve With Regulator	Using:	With Regulating Wrench
Highlight:	ball valve diaphragm , diaphragm actuator valve

SS316L sanitary pneumatic reversing valve of double seats for fluid conveying

Specification

Product Name	SS304 / SS316L sanitary pneumatic reversing valve of double seats for fluid conveying
Material of valve body	SS304 / 316L
Material of seal ring	EPDM
Max. working pressure	10 bar
Max. working temperature	130°C
Size	DN25 - DN150 or 1" - 6"
Connection	Threaded, welded, clamped
Standard	DIN, SMS, RJT, 3A
Operating mode	Manual, Pneumatic, Positioner
Certificate	FDA, CE, ISO
Double stop pneumatic actuator	To adjust regulator to slow the moving speed of actuator, anti - shocking and lengthen lifetime
Body seat	double seats
Body type	222type,221type,212type,211type,111type,121type,122type,112type
Installation	With double stop regulator

Features
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
The pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor

Product drawings

SS316L sanitary pneumatic reversing valve of double seats for fluid conveying 0

Product body type

SS316L sanitary pneumatic reversing valve of double seats for fluid conveying 1
