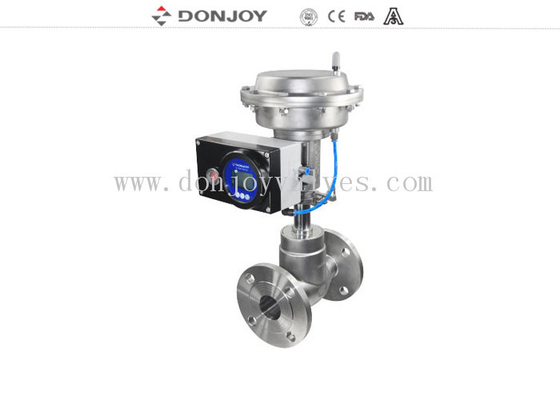

SS316L / SS304 Sanitary Diaphragm type Regulating Valve for regulating flow

SS316L / SS304 Sanitary Diaphragm type Regulating Valve for regulating flow

  • SS316L / SS304 Sanitary Diaphragm type Regulating Valve  for regulating flow
SS316L / SS304 Sanitary Diaphragm type Regulating Valve  for regulating flow
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $130 - 670 / Piece
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: Regulating Valve Size Of Panel: DN25 - DN100
Operation: Manual Media: 304 / 316L
Function: Flow Controlling Connection: Clamped
High Light:

ball valve diaphragm

,

diaphragm actuator valve

SS316L / SS304 Sanitary Diaphragm type Regulating Valve for regulating the flow



Specifications

Product Name:

Pneumatic Regulating Valve with Control Head

Valve Body Material:

AISI304, AISI316L

Seal Material:

EPDM

Installation

Rotary handle

Feature

Regulating and controlling

Working Pressure:

10Bar

Max. Working Temperature:

120 degree C

Available  size:

DN25 - DN100 or 1" - 4"

Available connection:

CLAMP, DIN, SMS

Air Operation:

can be configured to the intelligent/C-TOP controller

Operate

Pneumatic

Certificate:

FDA,CE



Description

Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A


Applications
Regulating valve is a pneumatic Proportional valve, which is an equipment to control the flow.It's widely used to the dairy, food, beverage, pharmacy and chemical industry.The most important application is in pressure control, flow control, level,ect.



Operating Principles
The position of valve tapered plug is adjusted by position.
So as to control flow rate through the valve(PD).
Besides intelligent process controller can control position and flow rate(PID)



Competitive Advantage
“DONJOY is the only company that passes nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
