1 Inch SS 316L Sanitary Manual Regulating Single Seat Valve with Welding Ends

1 Inch SS 316L Sanitary Manual Regulating Single Seat Valve with Welding Ends

diaphragm actuator valve

pressure reducing valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VHX100S1-020

Contact Us

Request A Quote
Product Details
Product Name:
Manual Regulating Valve
Size Of Panel:
DN25 - DN100
Operation Mode:
Manual
Media:
SS304 / 316L
Function:
Fluid Regulation
Connection:
Clamped
Max. Working Temperature:
120℃
Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $130 - 670 / Piece
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Supply Ability
1000 Piece/Pieces per Month
Product Description

1 Inch SS 316L Sanitary Manual Regulating Single Seat Valve with Welding Ends


Application
Regulating valve is a pneumatic Proportional valve, is a equipments to control the flow, widely used to the dairy,food, beverage,pharmacy and chemical industry. Most important application is the pressure control, flow control, level,ect.


Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD). Besides, the intelligent process controller can control position and flow rate(PID)



Specifications

Product Name:

1 Inch SS 316L Sanitary Manual Regulating Single Seat Valve with Welding Ends

Valve Body Material:

AISI304, AISI316L

Seal Material:

EPDM

Working Pressure:

10 Bar

Max. Working Temperature

120 degree C

Available  size:

DN25-DN100 or 1" - 4"

Available connection:

CLAMP, DIN, SMS

Air Operation:

can be configured to intelligent/C-TOP controller

Operate:

Manual

Certificate:

FDA, 3A, CE

Structure

Single valve seat/ double seat valve

Packaging details

Bubble pack for each valve. Outside carton or plywood cases. Or as per the request of customers.



Different configurations of reversing valve
1.Valve position can be adjusted divert seat
2.Diaphragm type divert seat valve
3.Aseptic divert seat valve
4.Jacketed type insulation divert seat valve
5.Double stop pneumatic divert seat valve
6.Thin film pneumatic divert seat valve
7.Electric divert seat valve
8. Pneumatic divert seat valve with sensor
9.Pneumatic divert seat valve with control unit
10.Pneumatic divert seat valve with mini control unit



Options

1. Gasket:FPM(Vition R) in compliance with FDA 177.2600

2. Connections:DIN,SMS,RJT,IDF

3. Double acting pneumatic actuator

4. External position sensor

5.Stem barrier (if shaft sterilization is required)

6.Body jacket insulation

7.Valve position regulator

8.Double stop actuator

9.Diaphragm type valve cavity

10.C-TOP control unit

11. Surface finish:RA≤0.5UM

12.Manual operated


Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”


Flow coefficient of valve (KV)
Please check the graphical illustration below:

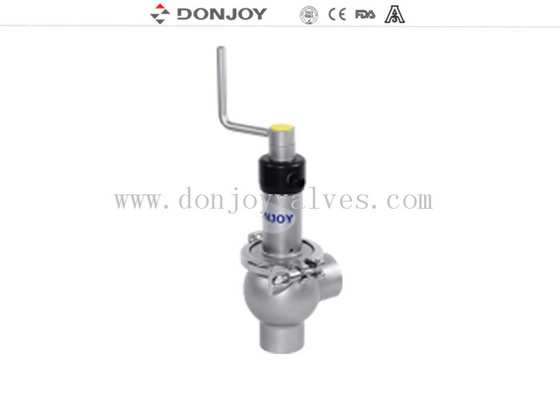

1 Inch SS 316L Sanitary Manual Regulating Single  Seat Valve with Welding Ends 0

Product display

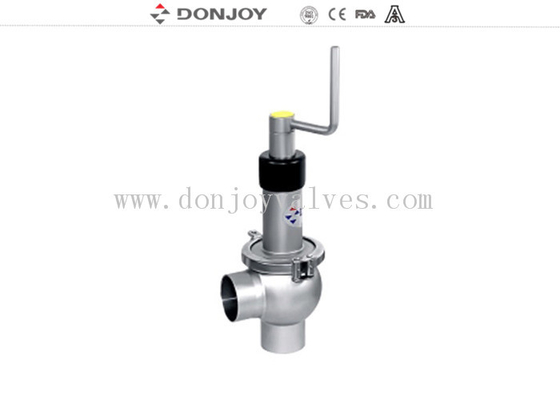

1 Inch SS 316L Sanitary Manual Regulating Single  Seat Valve with Welding Ends 1



FAQ

Q1: Are you factory or trading company?
A1: We are factory. and we have all kinds of the products.



Q2: Where is your factory located? how can I visit there?

A2: Our factory is located in Wenzhou city, Zhejiang Province,China

Welcome you visit our factory for business negotiation. Please try to contact our staff first by email or telephone. we will make an appointment and arrange the pick up.



Q3: Can your factory print our brand on the product.

A3: Our factory can laser print customer’s logo on the products.



Q4: What is the Warranty for the products?
A4: 1 year,but not including quick-wear parts,like O-ring



Q5: Can we pay using Paypal for the samples? Does it cost extra ?

A5: Sorry we only accept TT.



Q6: Do you charge for samples or freight?

A6: According to our company policy, customers need pay for them, we will return sample charge to you in official order.

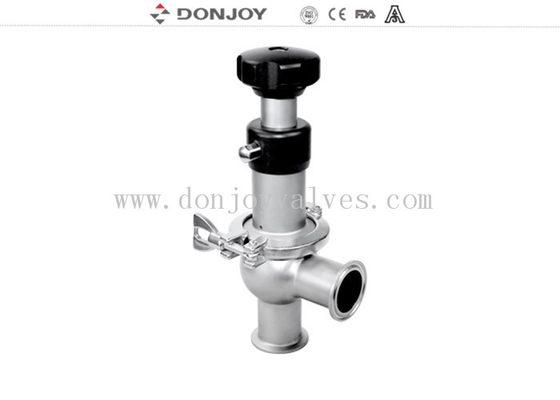

1 Inch SS 316L Sanitary Manual Regulating Single  Seat Valve with Welding Ends 2

1 Inch SS 316L Sanitary Manual Regulating Single  Seat Valve with Welding Ends 3
