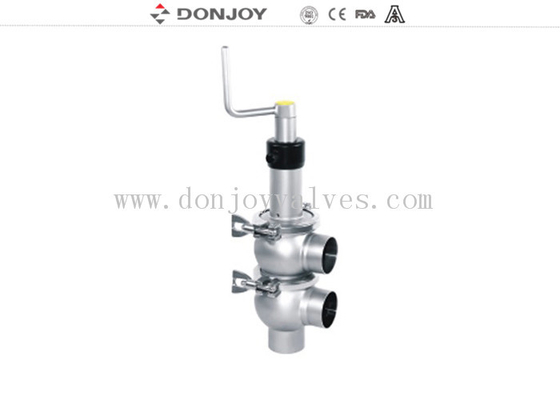

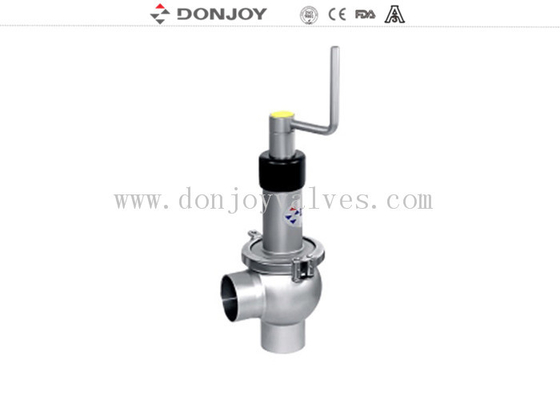

Manual Divert Seat Valve with SS Pull Handle for Flow Control

Manual Divert Seat Valve with SS Pull Handle for Flow Control

ball valve diaphragm

diaphragm actuator valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VTJ111Q1

Contact Us

Request A Quote
Product Details
Product Name:
Pneumatic Regulating Valve
Size Of Panel:
1" - 4"
Operation:
Pneumatic
Materials:
SS304 / 316L
Gasket:
EPDM / FPM / SILICON / NBR
Installation:
With Actuator
Function:
Regulating
Valve Seat:
Single Seat
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Manual Divert Seat Valve with SS PullHandle for Flow Control


Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regualating valve
Deadline regulating valve
Manual Regualting valve
High pressure actuator regualting valve
Body Combination Type: 20, 30, 11, 12, 21A, 22A



Specifications

Product Name:

3A Certificated 1- 4 Inch Manual Divert Seat Valve with SS Pull Handle for Flow Control

Packaging details:

Bubble pack for each valve etc.

Delivery details

Normally within 20 days after receiving T/T down payment.

Valve Body Material:

AISI304, AISI316L

Seal Material:

EPDM according to FDA 177.2600/FPM(Optional)

Working Pressure:

10Bar

Max. Working Temperature

-10 degrees C to 120 degrees C(depending on the diaphragm)

Available  size:

DN25-DN100 or 1" - 4"

Available connection:

CLAMP, DIN, SMS



Configuration optional

External position sensor

Steam barrier(if shaft sterilization is required)

Body jacket insulation

Valve position regulator

Double stop actuator

Diaphragm type valve cavity

C-TOP control unit

IL-TOP valve positioner

Operate:

Manual or Pneumatic optional

Internal surface finish

Ra<0.8um

External surface finish

sandblast or mirror polish

Certificate:

FDA,CE



Applications
Regulating valve is a pneumatic proportional valve, which is a equipments to control the flow.It's widely used in the dairy, food, beverage, pharmacy and chemical industry.The most important applications are in pressure control, flow control, level ect.


Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Also intelligent process controller can control position and flow rate(PID)
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”


Design and function
Designed according to 3A sanitary standard.
Normally closed valve (standard version)
Adjusting shaft of equal percent
360-degree adjustable valve body
With compact design
Double function positioning
PD: position controller
PID: process controller
Assembly/disassembly just to loosen the clamp
Standard connection: welding, clamping, threading


Product data

Manual Divert Seat Valve with SS Pull Handle for Flow Control 0

Manual Divert Seat Valve with SS Pull Handle for Flow Control 1

Manual Divert Seat Valve with SS Pull Handle for Flow Control 2

Tag : Reversing seat valve,  Donjoy Valves,  Divert seat valves , Single seat valves
