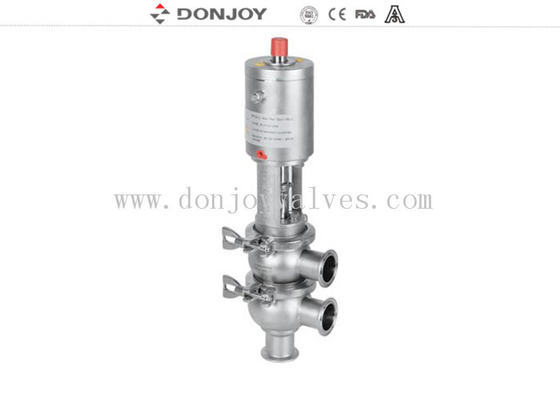

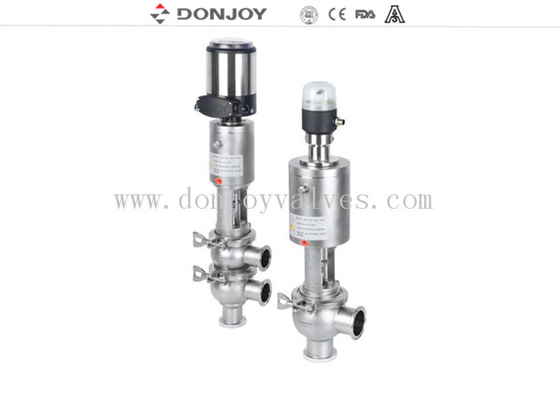

DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed

DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed

    • DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed
    • DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed
    • DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed
  • DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VHX100S1-020

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $130 - 670 / Piece
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Product Name: Manual Regulating Valve Size Of Panel: 1" - 4"
    Operation: Manual Media: 304/316L
    Function: Regulating Connection: Clamped
    High Light:

    diaphragm actuator valve

    ,

    pressure reducing valve

    DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed


    Description
    Options for Regulating Valve
    Heat Jacket type regulating valve
    Diaphragm-Aseptic Regulating valve
    Non-Retention Regulating Valve
    Aseptic Regulating valve
    Deadline regulating valve
    Manual Regulating valve
    High pressure actuator regulating valve
    Body Combination Type: 20, 30, 11, 12, 21A, 22A


    Specifications

    Product Name:

    DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed

    Valve Body Material:

    AISI304, AISI316L

    Seal Material:

    EPDM (standard) FPM FDA177.2600

    Compressed airPressure:

    5-7 Bar

    Max. Working Temperature:

    -10 degree to 120 degree(depending on gasket)

    Available  size:

    DN25-DN100 or 1" - 4"

    Available connection:

    CLAMP, DIN, SMS

    Operate:

    Manual

    Air connections

    G 1/8"(BSP)

    Certificate:

    FDA, 3A, CE

    Parts in contact with medium

    AISI 304/316L

    Other parts in stainless steel

    AISI 304

    Options

    Could be with pneumatic actuator, controller and positioner

    Function

     Fluid control

    Application

    food-processing, beverage, pharmaceutical and fine chemical industries.


    Applications
    The regulating valve is a pneumatic Proportional valve, which is an equipment to control the flow. It's widely used in the dairy, food, beverage, pharmacy, and chemical industry. The most important application is in pressure control, flow control, level ect.


    Operating Principles

    The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, the intelligent process controller can control position and flow rate (PID).


    Competitive Advantage
    “DONJOY is the only company that passes nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”


    Flow coefficient of valve (KV)
    Please check the graphical illustration below:

    DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed 0

    DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed 1

    DN 25-DN100 Clamped Stainless Steel 304 Regulating valve Standard Normally Closed 2



    FAQ

    1,How can we get sample?

    We could provide sample to you,but there will have sample cost.About sample ,pls freely contact or email me.



    2,Our business payment terms ?

    We will accept: T/T,L/C,Alipay.



    3,Our standard export packing ?

    For small order: carton box and weaving bag.

    Large order: Wooden box



    4,Shipment way choose ?

    Small orders will be choose by express,by airline.

    Large orders will be choose by sea.

    It will according to customer’s request.



    5. What is your MOQ?
    A: 1 PCS.



    6. What is the delivery time?
    A: It is about 5-7 days after we receive the payment for small order.

    For large order,it takes 20-30 working days after receiving down payment.

    It depends on customer order,



    7. Do you have products in stock?
    Yes, some stock can be shipped out within 3 days.



    8. Do you test all your goods before delivery?
    A: Yes, all products are fully inspected before delivery.



    9. What is the warranty?
    A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibility.



    Tag:  Over change valves, Aspetic Seat valve, Single seat valve
