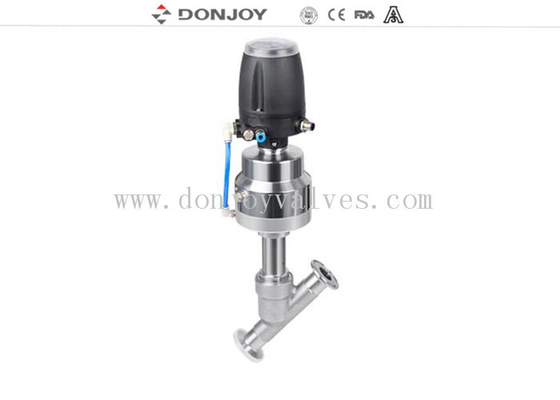

DN50 SS316L Pnuematic Angle Seat Valve with IL TOP for regulating

DN50 SS316L Pnuematic Angle Seat Valve with IL TOP for regulating

angle body valve

angle seated valves

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VQD100Q2

Contact Us

Request A Quote
Product Details
Product Name:
Angle Seat Valve
Size Of Panel:
DN50
Operation:
Pneumatic, Control Head
Material:
Ss316L
Connection:
Welded, Clamped, Thread, Flange
Working Pressure:
8bar (standard) 10bar (optional)
Structure:
With C-TOP
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$100-$500/pc
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

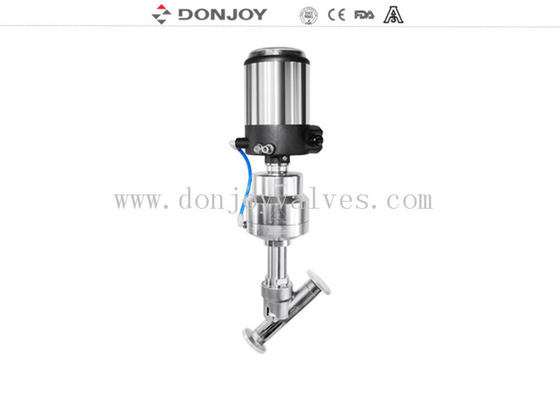

SS316L Plastic Pnuematic Angle Seat Valve DN50 Panel With C-TOP Clamped



Description

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

3. Temperature: maximum temperature up to 200 (depending on the seal type)

4. Seal: elastic shaft seal design, embedded spool design.



specifications:

Product Name: SS316L Plastic Pnuematic Angle seat valve with C-TOP of DN50 with clamped
Valve Body Material: CF8M/316L, CF8/304
Seal Material: EPDM
Working Pressure: 8 Bar, 10Bar(option).
Max. Working Temperature: 120 degree ,180Degree(Option)
Availably size: DN10-DN80,1/2"-3"
Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
Operate: Pneumatic ,Control Head
Certificate: FDA,CE,ISO

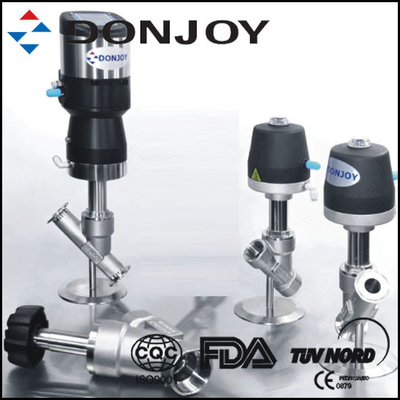

Operation Options for Seat Valve

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2. Pnuematice:Plastic and stainless steel actuators

3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor



Applications:

Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.



Operationg Principles

1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.



Certificate

Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.

DN50  SS316L Pnuematic Angle Seat  Valve with IL TOP for regulating 0



DN50  SS316L Pnuematic Angle Seat  Valve with IL TOP for regulating 1

Tag: Sanitary valves, Donjoy angle seat valves,  Seat valves
