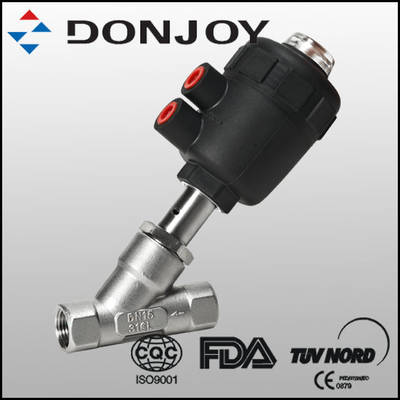

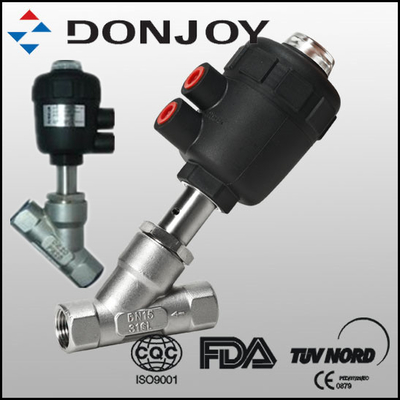

1.5”Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy

1.5”Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy

    • 1.5”Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy
    • 1.5”Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy
    • 1.5”Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy
    • 1.5”Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy
  • 1.5”Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQD100Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $100-$500/pc
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Plastic Pnuematic Angle Seat Valve Size Of Panel: 1.5"
    Operation: Pneumatic, Control Head, Media: 316L
    Connection: Internal Thread Feature: Better Sealing
    Advantage: Spool Without Bolt
    High Light:

    angle body valve

    ,

    angle seated valves

    1.5” Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy



    Detail:

    Angle Seat Valve

    Connection:  Internal thread

    Standard: DIN,3A,SMS,ISO,IDF, RJT..



    specifications:

    Product Name: SS316L 1.5” Pnuematic Angle Seat Valve, Internal thread Connection
    Valve Body Material: CF8M/316L
    Seal Material: EPDM
    Working Pressure: 8 Bar, 10Bar(option).
    Max. Working Temperature: 120 degree ,180Degree(Option)
    Availably size: DN10-DN100,1/2"-4"
    Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
    Operate: Pneumatic , Control Head
    Certificate: FDA,CE,ISO



    Operation Options for Seat Valve

    1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

    2. Pnuematice: Plastic and stainless steel actuators

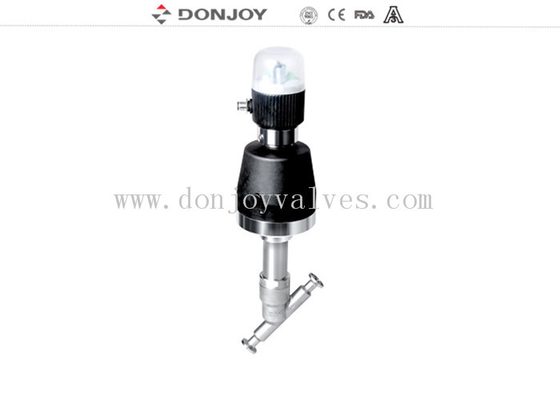

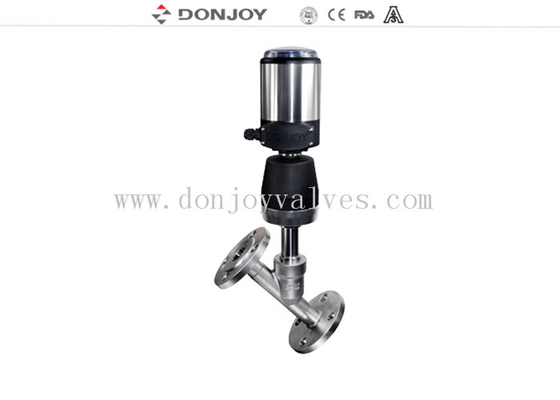

    3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor



    Applications:

    Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.



    Operationg Principles

    1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

    2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.



    Advantages

    1. No dead angle, no retention to meet the requirements of all kinds of health.

    2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

    3. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.

    4. Temperature: maximum temperature up to 200 (depending on the seal type)

    5. Seal: elastic shaft seal design, embedded spool design.



    Drawing

    1.5”Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy 0



    Regulating Curve

    1.5”Angle Seat Valve EPDM Seal Material For Water Treatment / Pharmacy 1

    Competitive goals

    Donjoy's vision is to become leading supplier in fluid control,high purity sanitary valve&pump fields, with advanced technology and excellent quanlity.
