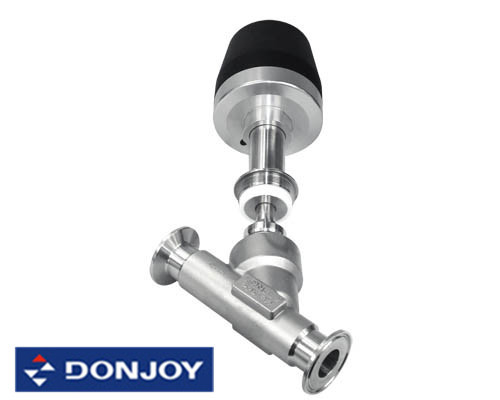

SS304 Thread/Clamp Connection Angle Body Valve , Angle Seated Valves 2 Inch High Purity

SS304 Thread/Clamp Connection Angle Body Valve , Angle Seated Valves 2 Inch High Purity

    • SS304 Thread/Clamp Connection Angle Body Valve , Angle Seated Valves 2 Inch High Purity
    • SS304 Thread/Clamp Connection Angle Body Valve , Angle Seated Valves 2 Inch High Purity
    • SS304 Thread/Clamp Connection Angle Body Valve , Angle Seated Valves 2 Inch High Purity
    • SS304 Thread/Clamp Connection Angle Body Valve , Angle Seated Valves 2 Inch High Purity
  • SS304 Thread/Clamp Connection Angle Body Valve , Angle Seated Valves 2 Inch High Purity

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQD100Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $100-$500/PC
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Angle Seat Valve Size Of Panel: DN10-DN80,1/2"-4"
    Operation: Pneumatic, Control Head Material: 304
    Connection: Thread Brand: Donjoy
    Characteristic: Water Hammer Protection,noise-free, Reliable Sealing Performance
    High Light:

    angle body valve

    ,

    angle seated valves

    SS304 Thread Connection Angle Body Valve , Angle Seated Valves 2 Inch High Purity



    Detail:

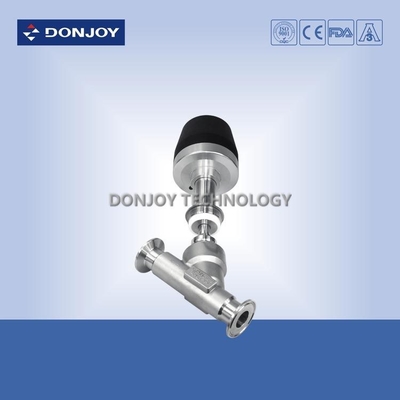

    Angle Seat Valve

    Connection: Clamped, Thread, Welding,Flange

    Standard: DIN,3A,SMS,ISO,IDF, RJT..



    specifications:

    Product Name: SS304 Plastic l Pnuematic Angle with 2 inch ,high purity, thread Connection
    Valve Body Material: CF8M/316L
    Seal Material: EPDM
    Working Pressure: 8 Bar, 10Bar(option).
    Max. Working Temperature: 120 degree ,180Degree(Option)
    Availably size: DN10-DN80,1/2"-4"
    Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
    Operate: Pneumatic ,Control Head
    Certificate: FDA,CE,ISO



    More products :

    http://www.maoyt.com/test/donjoyvalves.com/quality-7684759-5-0-7-0-bar-intelligent-valve-positioner-device-profibus-controller-valve-controller

    http://www.maoyt.com/test/donjoyvalves.com/sale-7708931-1-6-316l-304-single-seat-pneumatic-reversing-seat-valve-with-c-top.html



    Operation Options for Seat Valve

    1. Pnuematice:Plastic and stainless steel actuators

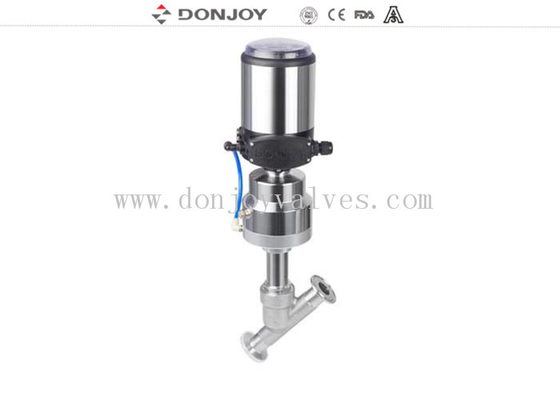

    2. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor



    Applications:

    Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.



    Operationg Principles

    1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.



    2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.



    Certificate

    Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.



    SS304 Thread/Clamp Connection Angle Body Valve , Angle Seated Valves 2 Inch High Purity 0

    Tag : Sanitary valves, Angle seat valve, Steam Valve
