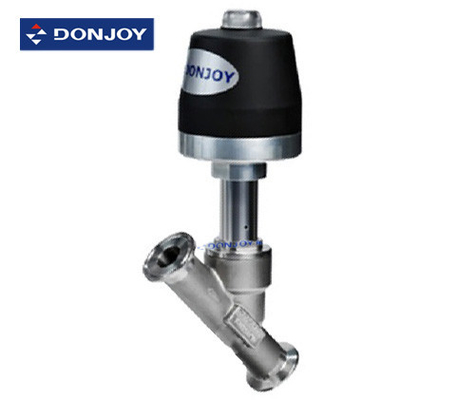

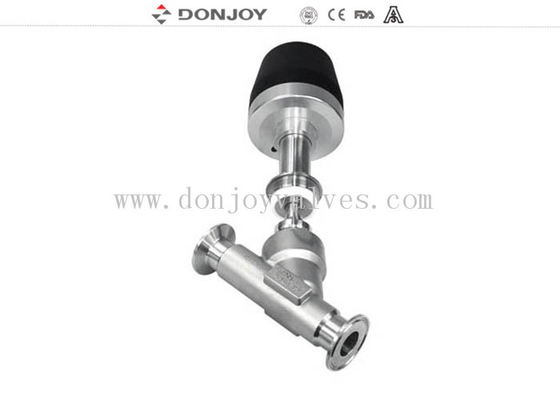

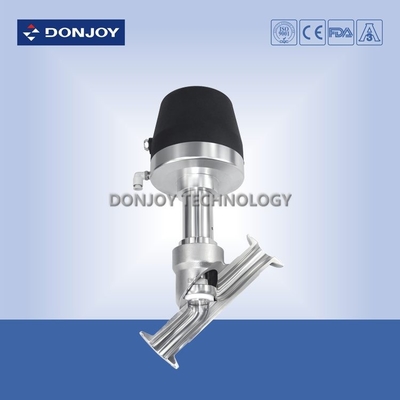

No Dead Angle Seated Valves Ferrule Connection High Purity Pipeline Switch

No Dead Angle Seated Valves Ferrule Connection High Purity Pipeline Switch

    • No Dead Angle Seated Valves Ferrule Connection High Purity Pipeline Switch
    • No Dead Angle Seated Valves Ferrule Connection High Purity Pipeline Switch
    • No Dead Angle Seated Valves Ferrule Connection High Purity Pipeline Switch
  • No Dead Angle Seated Valves Ferrule Connection High Purity Pipeline Switch

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VJZ100Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $100-$500/piece
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Angle Seat Valve Size Of Panel: DN10-DN801/2"-4"
    Operation: Pneumatic, Control Head, Material: Ss304/ss316L
    Connection: Welded, Clamped, Thread, Flange Working Temperature: 120℃(standard) 180℃(option)
    Function: Pipeline Switch
    High Light:

    angle body valve

    ,

    slanted seat valve

    No Dead Angle Seated Valves Ferrule Connection High Purity Pipeline Switch



    Description

    A new generation of high purity design of the angle seat valve

    1. No dead angle, no retention to meet the requirements of all kinds of health.

    2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;

    3. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.

    4. Seal: elastic shaft seal design, embedded spool design.



    specifications:

    Product Name: SS316L/SS304 Plastic Pnuematic Angle Seat Valve,no dead angle, ferrule Connection
    Valve Body Material: CF8/304 , CF8M/316L
    Seal Material: EPDM
    Working Pressure: 8 Bar, 10Bar(option).
    Max. Working Temperature: 120 degree ,180Degree(Option)
    Availably size: DN10-DN801/2"-4"
    Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
    Operate: Pneumatic , Control Head
    Certificate: FDA,CE,ISO



    Operation Options for Seat Valve

    1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

    2. Pnuematice: Plastic and stainless steel actuators

    3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor



    Applications:

    Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.



    Operationg Principles

    1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

    2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.



    Configuration feature + C-TOP

    Position feedback,Can be viewed on(Green) and off(Red)

    Built-in Solenoid valve

    Press button design (convenient to calibrate)

    Press with PLC system to automaticauy control

    Power:DC 24V



    Competitive goal:

    Donjoy 's vision is to become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent qualiy.
