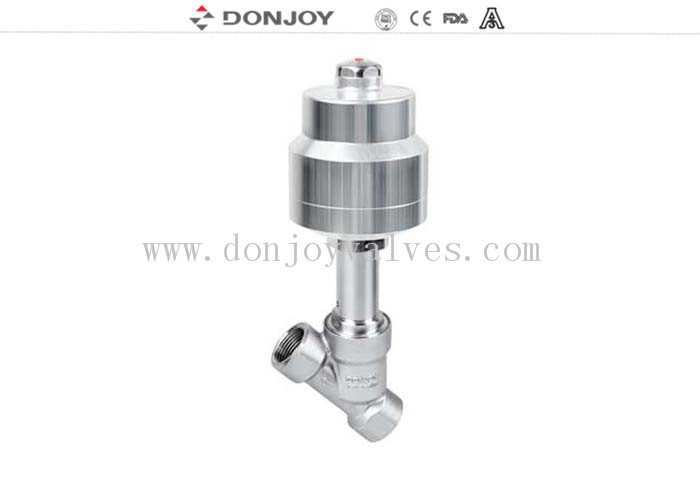

Professional 1 Inch Pneumatic Angle Seat Valve , Stainless Steel Angle Valve

Professional 1 Inch Pneumatic Angle Seat Valve , Stainless Steel Angle Valve

  • Professional 1 Inch Pneumatic Angle Seat Valve , Stainless Steel Angle Valve
  • Professional 1 Inch Pneumatic Angle Seat Valve , Stainless Steel Angle Valve
  • Professional 1 Inch Pneumatic Angle Seat Valve , Stainless Steel Angle Valve
  • Professional 1 Inch Pneumatic Angle Seat Valve , Stainless Steel Angle Valve
Professional 1 Inch Pneumatic Angle Seat Valve , Stainless Steel Angle Valve
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VQD100Q2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $100-$500/piece
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Angle Seat Valve Size Of Panel: DN10-DN80,1/2"-4"
Operation: Pneumatic, Control Head Material: 304/316L
Connection: Welded, Clamped, Thread, Flange Brand: Donjoy
Arrange Of Application: Printing, Dyeing,bleaching,food, Washing, Chemical,water Treament
High Light:

angle seated valves

,

slanted seat valve

Professional 1 Inch Pneumatic Angle Seat Valve , Stainless Steel Angle Valve



Description

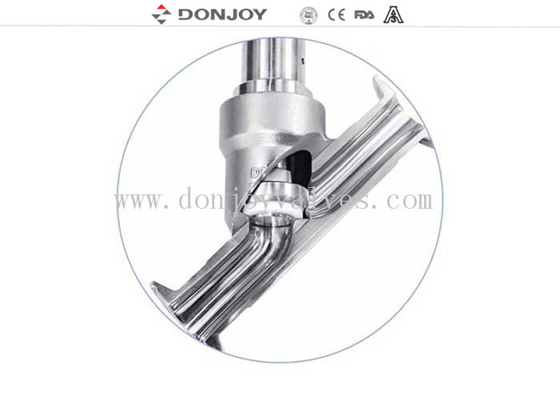

A new generation of high purity design of the angle seat valve

1. No dead angle, no retention to meet the requirements of all kinds of health.

2. Advantages: The spool without bolt, without considering the risk of damaging other equipment       because of bolt dropping;

3. The valve have no dead angle, no need to consider the resulting corner because of  the      complex structure.

4. Temperature: maximum temperature up to 200 (depending on the seal type)

5. Seal: elastic shaft seal design, embedded spool design.



specifications:

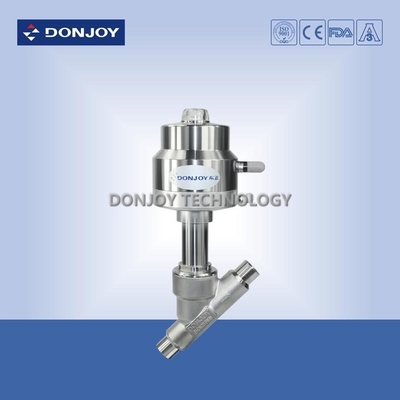

Product Name: 1"  316LStainless steel pneumatic Angle Seat Valve,with clamped connection
Valve Body Material: CF8M/316L
Seal Material: EPDM
Working Pressure: 8 Bar, 10Bar(option).
Max. Working Temperature: 120 degree ,180Degree(Option)
Availably size: DN10-DN80 or 1/2" - 4"
Availably connection: Thread,Weld,Clamp,BSP/BSP/NPT
Operate: Pneumatic , Control Head
Certificate: FDA,CE,ISO



More products :

http://www.maoyt.com/test/donjoyvalves.com/sale-7674212-rotary-jet-head-360-inject-tank-cleaner-1-5-bsp-thread-connection.html

http://www.maoyt.com/test/donjoyvalves.com/sale-7669960-stainless-steel-304-316-pneumatic-sanitary-butterfly-valves-with-positioner-and-actuator.html

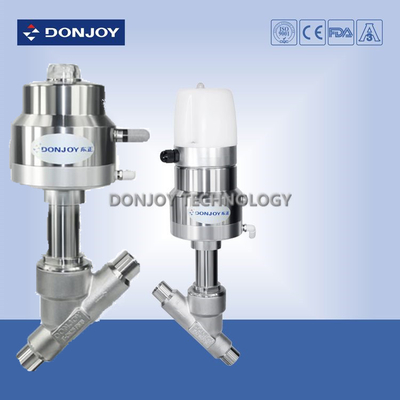

Operation Options for Seat Valve

1.  Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel

2.  Pnuematice:Plastic and stainless steel actuators

3.  Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor



Applications:

Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.



Operationg Principles

1. Angle seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.



Target of competition

Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.
