1'' - 4'' Pneumatic Aseptic Reversing Seat Valve with sideway control valve 316L

1'' - 4'' Pneumatic Aseptic Reversing Seat Valve with sideway control valve 316L

1'' - 4'' Pneumatic Aseptic Reversing Seat Valve with sideway control valve 316L

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $150 - 1,200 / Piece
Packaging Details: carton box
Delivery Time: according to order
Payment Terms: T/T, LC, Credit Card
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Material: SS304 / 316 Size: 1"-4" ,DN25-DN100
Operation: Pneumatic Type: Aseptic
Structure: With Side Control Valve Control Unit: Can Be Installed With C-TOP
High Light:

ball valve diaphragm

,

pressure release valve

1'' - 4'' Pneumatic Aseptic Reversing Seat Valve with sideway control valve 316L

Tag
Aseptic Reversing Seat Valve with sideway control valve
Aseptic Regulating Seat Valve
Seat valve

Specification

Product name

Pneumatic Aseptic Reversing Seat Valve with sideway control valve

Material of valve body

stainless steel 304 / 316L

Material of seal ring

EPDM / HNBR / VITON

Max. working pressure

10 Bar

Max. working temperature

120°C

Size

DN25 - 100 or 1" - 4"

Connection

Threaded, welded, clamped

Structure

With sideway control valve

Operation

Pneumatic actuator, manual

Control unit

Can be installed with C-TOP

Handles

rotary handle or spinner handwheel

Seal type

Waveform shaft seal

Control type

Pipeline control valve

Standard

DIN, SMS, RJT, 3A

Certification

FDA, CE, ISO


Operating principles
Seat valves are operated automatically by a single-acting or a double-acting pneumatic actuator.the shaft is moved to place the valve in the "open" or "closed" position by supplying compressed air.The 180° rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.

Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


Product display

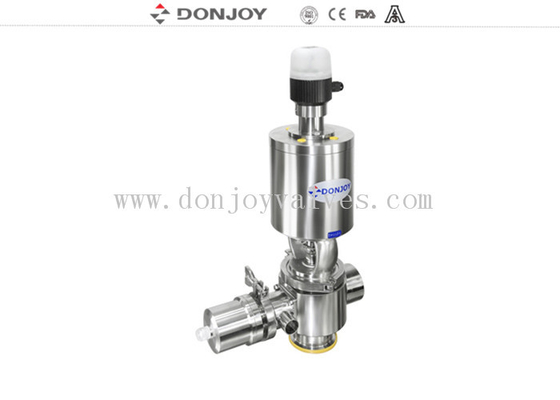

1'' - 4'' Pneumatic Aseptic Reversing Seat Valve with sideway control valve 316L 0

Tag: Mixing proof valve, Sanitary valve, Double seat valve
