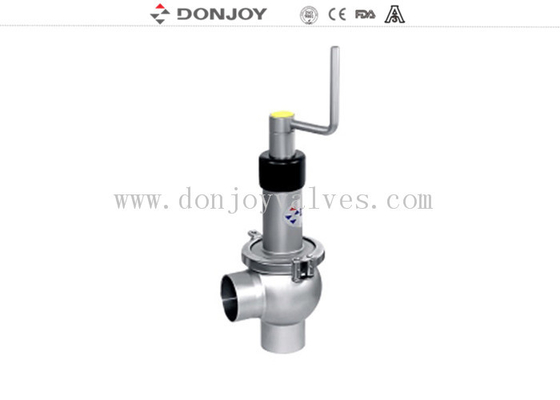

Manual regulating 304 / 316L reversing seat valve with rotary handle 1'' - 6''

Manual regulating 304 / 316L reversing seat valve with rotary handle 1'' - 6''

  • Manual regulating 304 / 316L reversing seat valve with rotary handle 1'' - 6''
Manual regulating 304 / 316L reversing seat valve with rotary handle 1'' - 6''
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VHS100S1-020
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $150 - 1,200 / Piece
Packaging Details: carton box
Delivery Time: according to order
Payment Terms: T/T, LC, Credit Card
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Material: SS304 / 316 Media: Fluid
Operation: Manual Size: DN25 - DN150 Or 1 Inch -6 Inch
Pressure: Medium Pressure Valve Seat: Single Seat
Body Direction: According To Working Situation Body Connection: Clamp Connection
High Light:

diaphragm actuator valve

,

pressure release valve

Manual regulating 304 / 316L reversing seat valve with rotary handle 1'' - 6"



Tag
Reversing seat valve with rotary handle
Manual divert seat valve
seat valve



Specification

Product Name:

Manual regulating reversing seat valve with rotary handle

Valve Body Material:

SS304 316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10 bar

Max.Working Temperature:

130°C

Available size:

DN25 - DN150 or 1" - 6"

Available connection:

Clamp/welding/thread/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual

Structure

With rotary handle

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Body seat

Single seat

Body connection

Clamp connection

Feature on handle:

With leak detecting hole and position safe lock

Manual model:

VHX100S1-111 / VHX100S1-021 / VHX100S1-020



Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


Product drawings

Manual regulating 304 / 316L reversing seat valve with rotary handle 1'' - 6'' 0



Manual regulating 304 / 316L reversing seat valve with rotary handle 1'' - 6'' 1

Tag : Manual valve, Regulating valve, L Type valve
