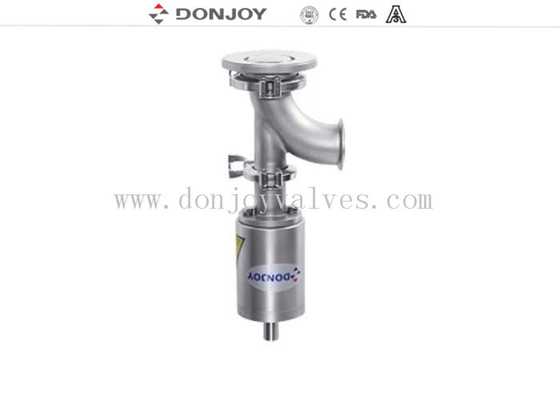

Clamp Connection Sanitary Tank Bottom Valve 3 Inch Size SS316L Material

Large Image : Clamp Connection Sanitary Tank Bottom Valve 3 Inch Size SS316L Material

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO
Model Number:	NO.VKD210S1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	Carton, Wooden Case
Delivery Time:	accoding to order
Payment Terms:	T/T,L/C, Credit Card
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Product Name:	Tank Bottom Valve	Power:	Pneumatic
Material:	SS316L	Size:	3 Inch
Pressure:	Medium Pressure	Media:	Food, Beer, Beverage, Dairy Etc.
Max. Working Pressure:	10bar/145PSL
Highlight:	flush bottom tank valve , single seat valve

Clamp Connection Sanitary Tank Bottom Valve 3 Inch Size SS316L Material

Description

Product Name:	stainless steel sanitary pneumatic tank bottom seat valve of SS316L 3 Inch with clamp connection
Valve Body Material:	SS316L
Seal Material:	NBR or FPM
Working Pressure:	10 Bar / 145PSI
Max.Working Temperature:	-10℃to +120℃(EPDM)14°F 248° F+140(SPI, max. 30min) 248°F
Available size:	1"-4" DN25-DN100
Available connection:	Clamp
Operated:	Air/Spring, Air / Air
Available structure:	Flange type, 90℃ elbow type
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food processing, beverage, pharmacy, cosmetic, etc

Design and features

1. 3A sanitary design
2.Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing
8. Easy disassembly by loosening the clamp
9. Connections: clamp

Technical specifications
1. Size: DN25-DN100 1”-4”
2. Working temperature: -10℃to +120℃ (EPDM)14°F 248° F+140(SPI, max. 30min) 248°F
3. Max. Working pressure: 10bar / 145PSI
4. Compressed air pressure: 6-8bar / 87-116PSI
5. Air supply connections: G1/8” (BSP)
Parts contact with the product: AISI 316L, AISI304
Other parts: AISI 304
Gaskets( standard): EPDM according to FDA 177.2600
Internal surface finish: Ra≤0.8μm
External surface finish :Mirror finish

Application scope:
The tank bottom seat valve is a pneumatically operated single seat valve, assembled at the bottom of tank, used in diary,food processing, beverage,pharmaceutical and fine chemical industries.

Packging details:

Bubble pack for each valve, outside packing are carton or plywood cases. Or as per the request of customer.
Delivery time: Usually within 20days after T/T down payments.

Technical data
Clamp Connection Sanitary Tank Bottom Valve 3 Inch Size SS316L Material 0
