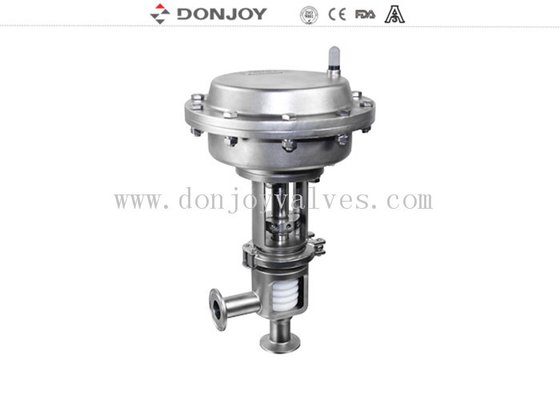

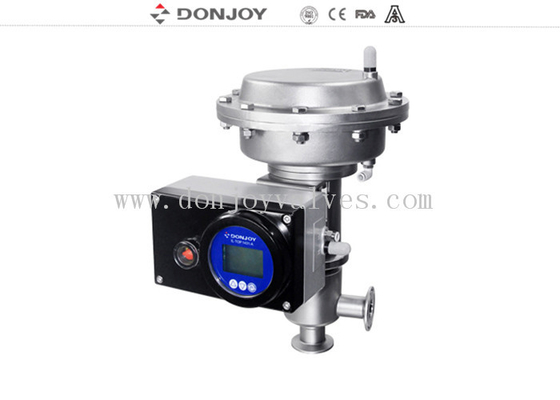

Stainless steel sanitary diaphragm regulating pneumatic reversing valve with square positioner

Stainless steel sanitary diaphragm regulating pneumatic reversing valve with square positioner

    • Stainless steel sanitary diaphragm regulating pneumatic reversing valve with square positioner
    • Stainless steel sanitary diaphragm regulating pneumatic reversing valve with square positioner
  • Stainless steel sanitary diaphragm regulating pneumatic reversing valve with square positioner

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VHX600Q1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: US $200 - 1,200 / Piece
    Packaging Details: carton box
    Delivery Time: according to order
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Material: SS304 / 316L Media: Water Etc.
    Operate Mode: Pneumatic Size: DN25-DN100 Or 1"-4"
    Pressure: Medium Pressure Structure: Regulating Fluid
    Product Name: Reversing Valve Of Diaphragm Type Feature: Installed With Square Positioner
    High Light:

    ball valve diaphragm

    ,

    pressure release valve

    Stainless steel sanitary diaphragm regulating pneumatic reversing valve with square positioner

    Tag
    diaphragm regulating pneumatic reversing valve with square positioner thin film reversing valve with square positioner seat valve with square positioner

    Specification

    Product Name:

    Stainless steel sanitary diaphragm regulating pneumatic reversing valve with square positioner

    Valve Body Material:

    SS304 / 316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    Body seat

    Single seat

    Max Working Pressure:

    20 bar

    Max.Working Temperature:

    130 °C

    Available size:

    DN25 - DN100 or 1" - 4"

    Available connection:

    Clamp/welding/thread/special connection

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Pneumatic

    Structure

    With thin film pneumatic actuator

    Feature

    Could be installed with positioner

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic etc

    Advantage:

    Diaphragm type regulating divert seat valve


    Design features
    Diaphragm pneumatic reversing valve is equipped with all the function which standard globe valve is equipped with.


    Technical features
    It could bear higher pressure; shorter height of valve; could resist water hammer and positioner could be installed on side way to realize automatic flow regulation.


    Characteristics
    The material connected with others: AISI 316L / 1.4404
    The material in other parts: AISI 304
    Seal ring: EPDM FDA 177.2600
    Internal surface finish: Ra ≤ 0.8μm
    External surface finish: CNC fine machining


    Certificates
    3A/54-02 (1580) PED/97/23/EC, FDA.177.2600, ISO
    Optional
    Gasket: NBR / MVQ / FPM
    Pneumatic actuator of double-acting
    Inductive position sensor
    C - TOP control head
    Position sensor


    Product drawings
    Stainless steel sanitary diaphragm regulating pneumatic reversing valve with square positioner 0
