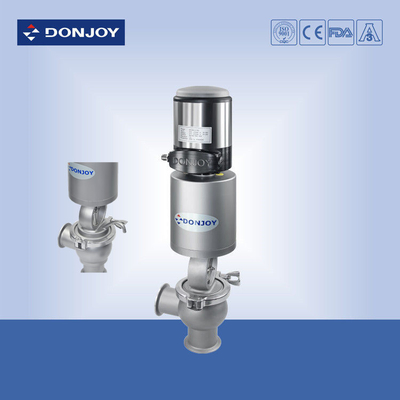

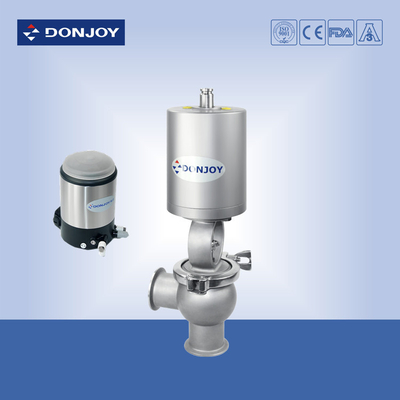

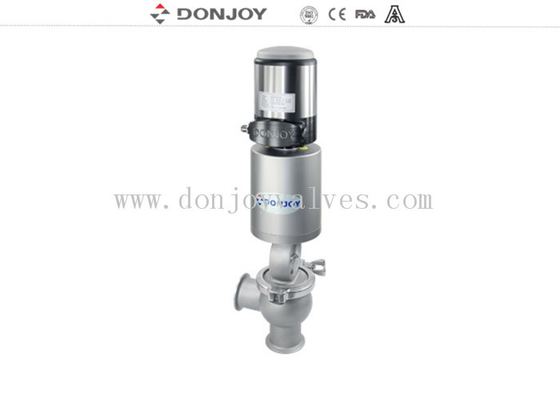

1"- 4" Pneumatic Regulating Valve with actuator and positioner for control valve flow

1" - 4" Pneumatic Regulating Valve with actuator and positioner for control valve flow

Specifications


Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High-pressure actuator regulating valve
Body Combination Type: 20, 30, 11, 12, 21A, 22A

Applications
The regulating valve is a pneumatic Proportional valve, which is equipment to control the flow.
It's widely used to the dairy, food, beverage, pharmacy and chemical industry. The most important application is in pressure control, flow control, level,ect.

Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Also intelligent process controller can control position and flow rate(PID)

Competitive Advantage
“DONJOY is the only company that passes nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Design and function
Designed according to 3A sanitary standard.
Normally closed valve (standard version)
Adjusting shaft of equal percent
360 degree adjustable valve body
With compact design

Double function positioning
PD: position controller
PID: process controller
Assembly/disassembly just to loosen the clamp
Standard connection: welding, clamping, threading

Technical features
Material in connecting part: AISI 316L / 1.4404
Material in other parts: AISI304 / 1.4301
Material of seal ring: EPDM / FDA 177.2600
Internal surface finish: Ra≤0.6μm
Jacketed heat valve body ( optional )
Shaft sterilization / cleaning ( optional )
Actuator with higher pressure ( optional )
Gasket: NBR / FPM ( optional )
Connection standard: DIN / SMS / RJT / IDF / ISO

Technical data



Product display
