DIN / SMS / RJT Manual sanitary butterfly valve thread end SS304

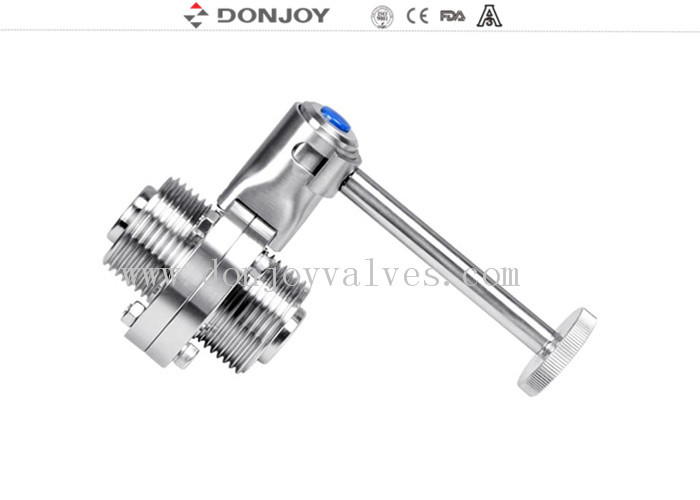

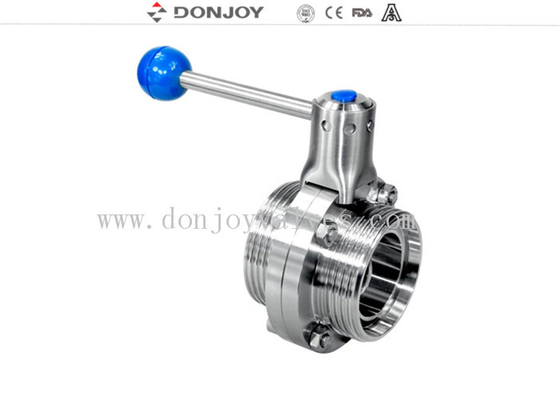

Large Image : DIN / SMS / RJT Manual sanitary butterfly valve thread end SS304

Product Details:

Place of Origin:	China
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Delivery Time:	10-30 working days after payment
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Connection:	Threaded	Materials:	304 / 316L
Size:	DN10 - DN300, 1/2" - 12"	Handle:	Handle
Standard:	DIN,SMS,RJT,INCH	Structure:	Multi - Position Handle And Butterfly Valve
Highlight:	sanitary butterfly valve , pneumatic butterfly valve

DIN / SMS / RJT Manual sanitary butterfly valve thread end SS304

Specifications

Product Name:	DIN/SMS/RJT Manual Stainless Steel sanitary butterfly valve thread end SS304
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
MaxWorking Pressure:	10Bar
Max.Working Temperature:	130 degree C
Availably size:	DN10-DN300, 1/2"-12"
Availably connection:	Clamp/welding/thread/special connection
Availably standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic, Electric
Handle application:	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Model of plastic multi - position handle:	NO. VSB04 / NO.VSB06 / NO.VSB08
Installation of handle:	On one side of valve

Operating Principles
1.The butterfly Valve can be Operated automatically Through actuator or manually with the handle
2.The handle blocks the valve in the Open or Closed Position, Certainly there are the other postion avalibalbe
3.The actuator push piston of axial movement into 90Degree so that it controls butterfly valve

Application:
EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
Fine turning handweel butterfly valve:

Feature:

The butterfly valve has a very flexible flow regulating device, the switch can beadjusted by scale sheet valve postion feedback..
Connection: Clamped, welded and threaded etc.
Standard: 3A,SMS, DIN,RJT, ISO, ISO1127...
Disc: AISI316L/304( Forged
Valve Body:AISI316L/304( Forged)
Gasket:EPDM, SILICONE, VITION
Surface Finishing:Ra≤0.8
Art: All producing By CNC machine

Packaging Details:
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payments

Operating Torque(N.M)

DN25/1"	DN40/1.5"	DN50/2"	2.5"	DN65	3"	DN80	DN100/4"	DN125	DN150
3	4	5	10	12	14	18	25	40	55
