| Place of Origin: | China |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | NO. |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Materials: | 304 / 316L | Size: | DN10 - DN300, 1/2" - 12" |
|---|---|---|---|
| Operation: | Plastic Multi - Position Handle | Connection Mode: | Clamped |
| Structure: | Multi - Position Handle And Butterfly Valve | Temperature Of Media: | Midum |
| High Light: | stainless butterfly valves,pneumatic butterfly valve |
||

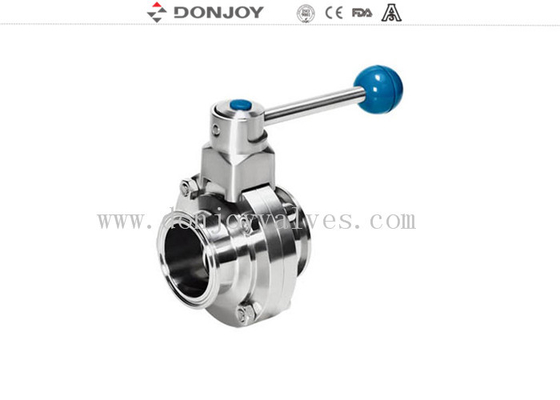

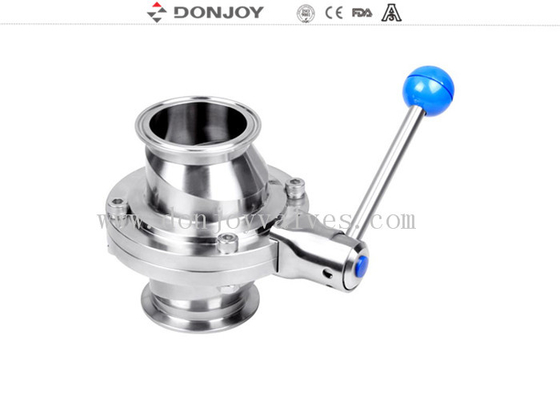

Stainless Steel Clamped End actuated butterfly valve High purty Pull hand
Product Name
Sanitary Welded Butterfly Valve,
sanitary stainless steel three pieces flange butterfly valve,
sanitary stainless steel thread butterfly valve,
sanitary stainless steel clamp butterfly valve,
Stainless Steel Sanitary Manual Butterfly Valve (3A, DIN, SMS, ISO, RJT, DS, BS)
Technical Specifications
Max.Pressure: 10Bar(DN25-DN100), 8Bar (DN125-DN150), 5Bar( DN200-DN300)
Min. Pressure:0.2Bar
Working Temperature: -10C° to +120 Degree( EPDM)
Specifications
|
Product Name: |
Stainless Steel Butterfly valve Clamped End SS316L/304 High purty Pull hand valve |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
MaxWorking Pressure: |
5Bar |
|
Max.Working Temperature: |
120 degree C |
|
Availably size: |
DN10-DN300, 1/2"-12" |
|
Availably connection: |
Clamp/welding/thread/special connection |
|
Availably standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Model of plastic multi - position handle: |
NO. VSB04 / NO.VSB06 / NO.VSB08 |
|
Installation of handle: |
On one side of valve |
Product Description:
Material of valve: AISI304, AISI316L
Standard of valve: DIN/SMS/3A/ISO/IDF
Flux domination of pipeline: DN25-150&1"-6", applied to the stainless steel pipeline system
Working principle: Remote-controlled operation by the driving gear or manual operation by the handle
Three drive forms: Normally closed, normally opened and opened & closed by two air flues separately.
Medium: Beer, Dairy, Beverage, Pharmacy.
Design and Features
Compact and robust Design
Available sizes DN25-DN300(1/2"-12")
Multi-Position handle is suitable up to DN100/4"
Pull hand is suitable up to DN25-DN300(1/2"-12") PED97/23EC FDA.177.2600
The valve body can be changeable with any kind of connection
Operation
1.Pull Handle
2.Pull Handle with Sensor
3.Fine-Tuning Handle
4.Multi-Position Handle
5.Multi-Position Handle(09 Type Blue Plastic)
6.Multi-Position Handle(11 Type Stainless Steel)
7.Multi-Position Handle(13 type Stainless Steel Lockable Handle)
8.Electric
9.Alumimu Actuator
10.SS Pneumatic+C-top+Positioner...
Operating Torque(N.M
|
DN25/1” |
DN40/1.5” |
DN50/2” |
2.5” |
DN65 |
3” |
DN80 |
DN100/4” |
DN125 |
DN150 |
|
3 |
4 |
5 |
10 |
12 |
14 |
18 |
25 |
40 |
55 |
Technical data
|
Size |
L1 |
L2 |
B |
 |
|
|
DN10-DN40 |
0.5-1.5” |
126 |
20.2 |
8 |
|
|
DN50 |
2” |
133 |
22.2 |
10 |
|
|
DN65 |
2.5-3” |
144 |
22.2 |
10 |
|
|
DN80-DN100 |
3.5-4” |
160 |
22.2 |
11 |
|
|
DN125-DN150 |
5-6” |
220 |
30.2 |
14 |
|
|
DN200-DN300 |
8-12” |
284 |
30.2 |
14 |
