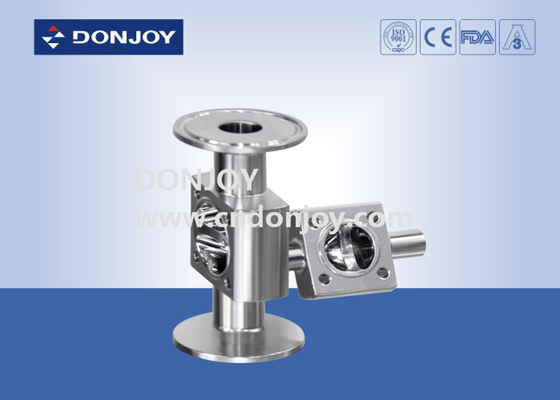

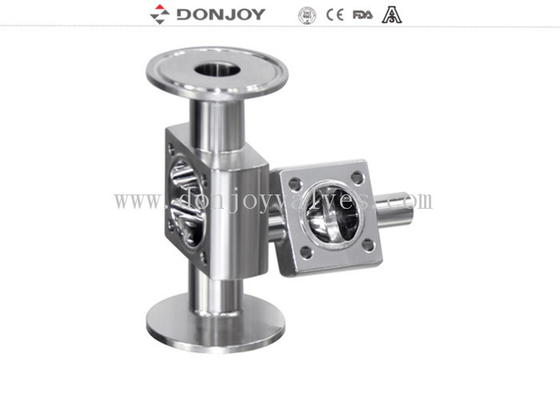

Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body

Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body

  • Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body
  • Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body
  • Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body
  • Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body
Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: DONJOY-T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 7-10days
Payment Terms: T/T, LC, Credit Card
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Product: Stainless Steel Mini Type Multi-port Diaphragm Valve Body Forging Body: 1.4404/316L
Casting Body: 1.4404/316L Max Pressure: 8bar(depending On Diaphragm)
Temperature: -30 C- 150C(depending On Diaphragm) Connection: Welding/clamp/flange/thread
Actuator Material: Stainless Steel Type: Multi-port Combination
High Light:

sanitary sample valve

,

3 way diaphragm valve

Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body



Specifications

Product name

Stainless Steel Mini type multi-port diaphragm valve body

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:

8Bar(depending on diaphragm)

Max.Working Temperature:

-30 to 150 degree C

Availably size:

1/4”-3/4”, DN6-DN15

Availably connection:

Clamp/welding/thread/special connection

Availably standard:

3A/BPE/DIN/ISO/IDF

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging details

Plywood case packing or as per the request of customers

Delivery details

Usually within 20 days after receiving T/T down payment


Description

Various configuration of Diaphragm valve

Pneumatic operation

1. Didaphragm valve with Positioner/Process Controller(IL-TOP)

2. Diaphragm valve with Control Unit(C-Top)

3. Valve position Regulator

4. Position Sensor Module

5. Stainless steel actuator

6. Plastic Actuator



Electric Operation

7. Electric Diaphragm valve



Manual Operation

8. Plastic Handle

9. Stainless steel handle



Valve Body Material

10. Body: Casting / Forging



Applications:

Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.



The valve is excellent for flow control as well as open/close control.

The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.

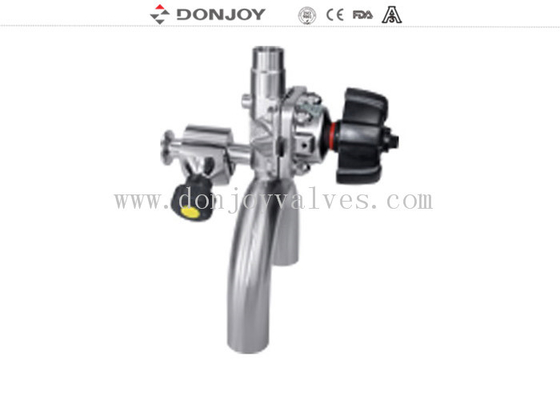

Multi-port diaphragm valve  combination


SPA configuration  and  GMP configuration
Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body 0
Forging Body Sanitary Diaphragm Valve , Mini type multi-port diaphragm valve body 1
