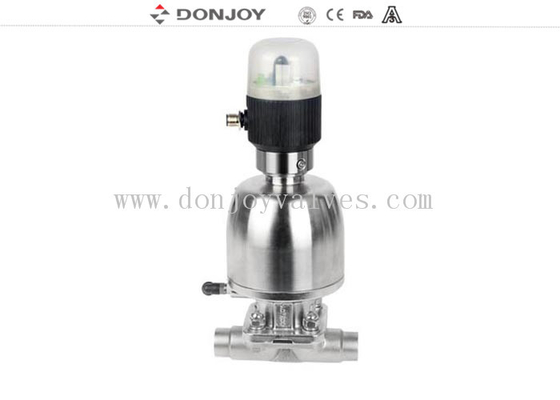

SS 316L Full Port Mini type Clamped diaphragm valve wtih F top( One sensor to feedback the position)

SS 316L Full Port Mini type Clamped diaphragm valve wtih F top( One sensor to feedback the position)

diaphragm check valve

3 way diaphragm valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.MINI - VGM0S1, NO.ZZ - K

Contact Us

Request A Quote
Product Details
Product Name:
Welding Mini Diaphragm Valve With Ss Handwheel
Valve Body:
Casting Body/forging Body
Size:
DN6-DN15
Single Gasket:
EPDM
Operating Way:
Manual Handwheel
Application:
Dairy/ Beverage/ Pharmacy
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

SS 316L Full Port Mini valve diaphragm with F-Top( One sensor to feedback the position)

Specifications

Product Name:

SS 316L Full Port Mini Diaphragm Valve with Stainless Steel
handwheel 3/4" Welding Ends

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces
PTFE+EPDM

MaxWorking Pressure:

8Bar

Max.WorkingTemperature:

150 degree C

Available  size:

1/4”-3/4”, DN6-DN15

Available connection:

Clamp/weld/thread/special connection

Available standard:

3A/BPE/DIN/ISO/IDF


Operated:

Manual,Pneumatic

Available structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positionerIL-TOP / C-TOP control / position
sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Optional:

Plastic cap on the outlets of valve

Actuator type:

Pneumatic with air input / output


Description
 Various configuration of Diaphragm valve
 Pneumatic Operation
 1. Didaphragm valve with Positioner/Process Controller(IL-TOP)
 2. Diaphragm valve with Control Unit(C-Top)
 3. Valve position Regulator
 4. Position Sensor Module
 5. Stainless steel actuator
 6. Plastic Actuator
 Electric Operation
 7. Electric Diaphragm valve
 Manual Operation
8. Plastic Handle
9. Stainless steel handle

Valve Body Material
 10. Body: Casting / Forging


Packaging Details
 Bubble pack for each valve. Outside packing are carton or plywood cases.
 Or as per the request of customers.



Delivery details
 Usually within 20 days after receiving T / T down payment.

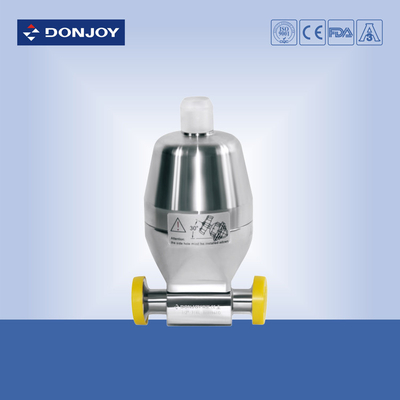

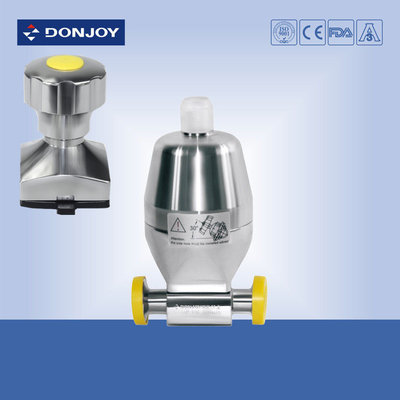

 Mini - type diaphragm valve
