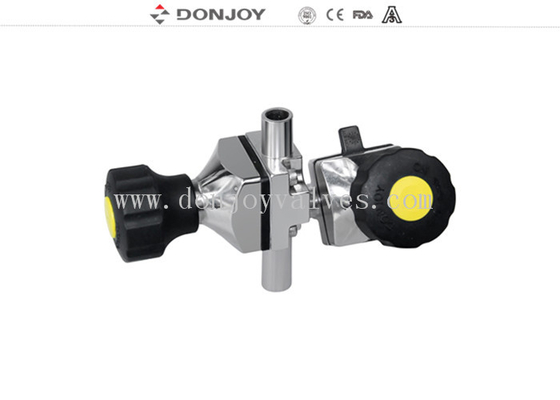

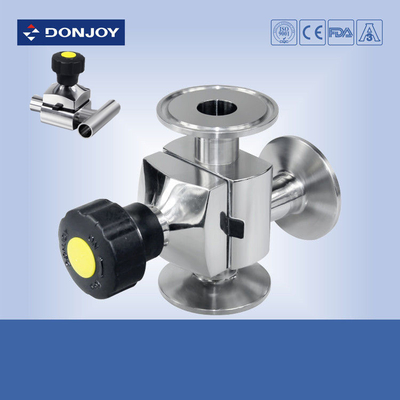

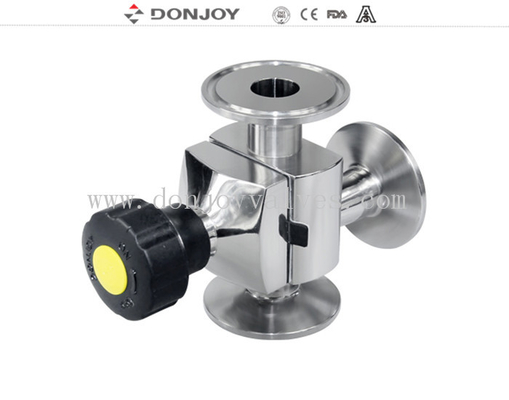

SS316L 1/4" Mini Three - way Sanitary Diaphragm Valve , clamp Connection

SS316L 1/4" Mini Three - way Sanitary Diaphragm Valve , clamp Connection

sanitary sample valve

3 way diaphragm valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO. MINI-VGM0S2, NO.T-K

Contact Us

Request A Quote
Product Details
Product Name:
Mini-type Tee Diaphragm Valve
Size:
1/4"-3/4",DN6-DN15
Gasket:
SILICONE
Structure:
T Port/ TEE
Max Temp:
-30 To 150 Degree C(depending On Diaphragm)
Max Pressure:
10bar/146psi
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

SS316L 1/4" Mini Three - way Sanitary Diaphragm Valve , clamp Connection

Specifications


Product Name:

SS316L 1/4" Mini Three-way Diaphragm Valve with Plastic Hand Wheel Clamp Ends

Valve Body Material:

SS316L

Seal Material:

Single silicone gasket/ Adhesive PTFE+EPDM/Two pieces
PTFE+EPDM

Max Working Pressure:

10 Bar

Max.Working Temperature:

150 degree C

Material requirement:

Sanitary level

Pneumatic actuator:

Could be selected

Available  size:

1/4”-3/4”, DN6-DN15

Available connection:

Clamp/weld/thread/special connection

Available standard:

3A/BPE/DIN/ISO/IDF

Operated:

Manual,Pneumatic

Available structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc


Packaging Details:

Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.


Applications
Manually operated diaphragm valve is specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as for open/close duties.
The diaphragm valve is better in feature of flow in comparison with other valves. It si eaiser to clean up and better to process the sunstance with particles. The phenomenon of air pocket is rare during application of flow control.

Valve Body
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.

Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T deposit payment.

Size of diaphragm valve


SS316L 1/4" Mini  Three - way Sanitary Diaphragm Valve , clamp Connection 0
