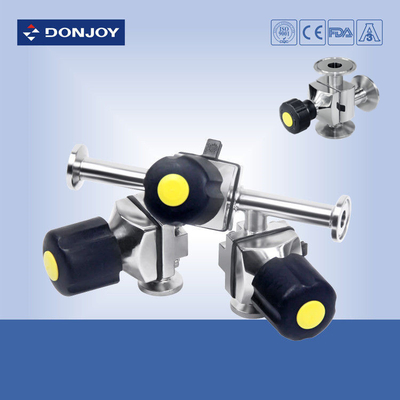

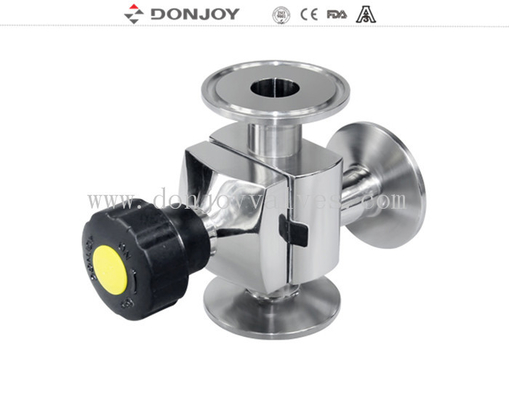

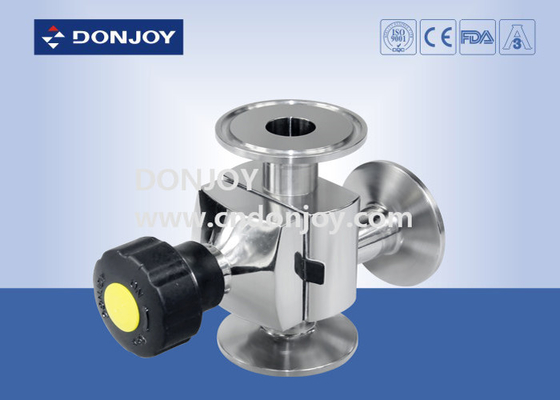

316L Mini Type 3 way Sanitary Diaphragm Valve L type with tri clamp End
Applications
Manually operated diaphragm valve is specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as for open/close duties.
The diaphragm valve is better in feature of flow in comparison with other valves. It si eaiser to
clean up and better to process the sunstance with particles.
The phenomenon of air pocket is rare during application of flow control.
Specifications
|
Product Name: |
Mini - type Tee Three - way Sanitary Diaphragm Valve T |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces |
|
Max Working Pressure: |
10 Bar |
|
Max.WorkingTemperature: |
-30 to 150 degree C(depending on diaphragm) |
|
Availably size: |
1/4”-3/4”, DN6-DN15 |
|
Availably connection: |
Clamp / weld / thread / special connection |
|
Availably standard: |
3A / BPE / DIN / ISO / IDF |
|
Operation: |
Manual or pneumatic is optional |
|
Structure: |
Mini model |
|
Manual applies to body |
T-port , L port |
|
Control: |
Smart valve positioner / C-TOP control |
|
Ports |
Multi-port , three ports |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
Operating Principles
The diaphragm provides the body seal as well as the seat seal. There are no paths to the outside environment so it's suitable for aseptic processes.
When the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body.When the pressure plate moves the diaphragm flexes and is forced down onto the seat area in the centre of the body thus closing off flow path through body.he inter relationship of body to the pressure plate prevents over compression of the diaphragm.
Product design:

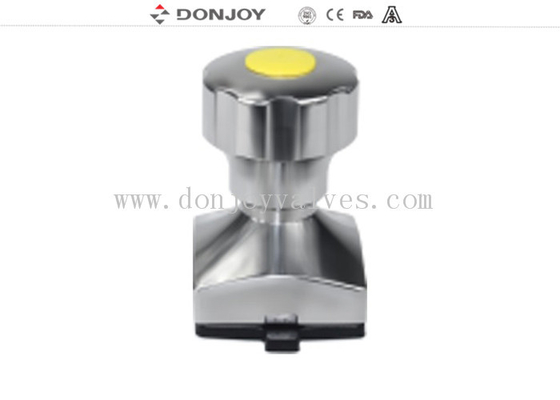

Product Actuator display
Product body display
