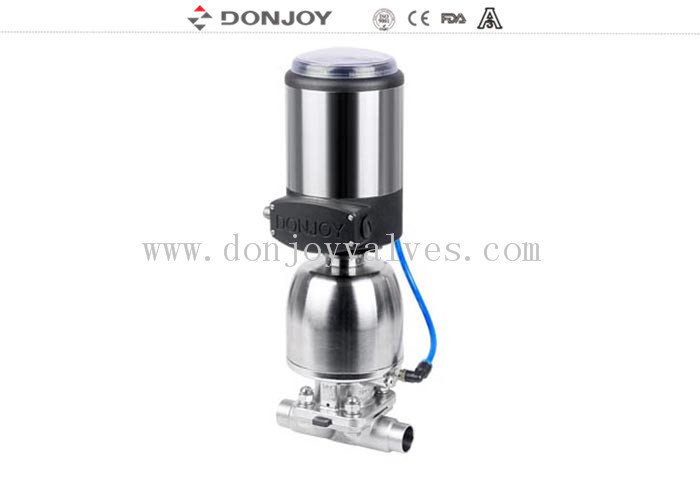

316L Sanitary Diaphragm Valve Regulating Valve with positioner , C-TOP 1'' - 4''
Applications
Manually operated diaphragm valve is specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as for open/close duties.
The diaphragm valve is better in feature of flow in comparison with other valves. It si eaiser to clean up and better to process the sunstance with particles. The phenomenon of air pocket is rare during application of flow control.
Specifications
|
Product Name: |
Sanitary Diaphragm Valve Regulating Valve with positioner |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM |
|
Max Working Pressure: |
6-8 Bar(depending on diaphragm) |
|
Max.WorkingTemperature: |
-30 to 150 degree C |
|
Availably size: |
1''-4'', DN20-DN100 |
|
Availably connection: |
Clamp / weld / thread / special connection |
|
Availably standard: |
3A / BPE / DIN / ISO / IDF |
|
Operated: |
Manual,Pneumatic |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Valve body: |
Forging or casting |
|
Configuration: |
Flexible with various valve seat |
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit (C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging

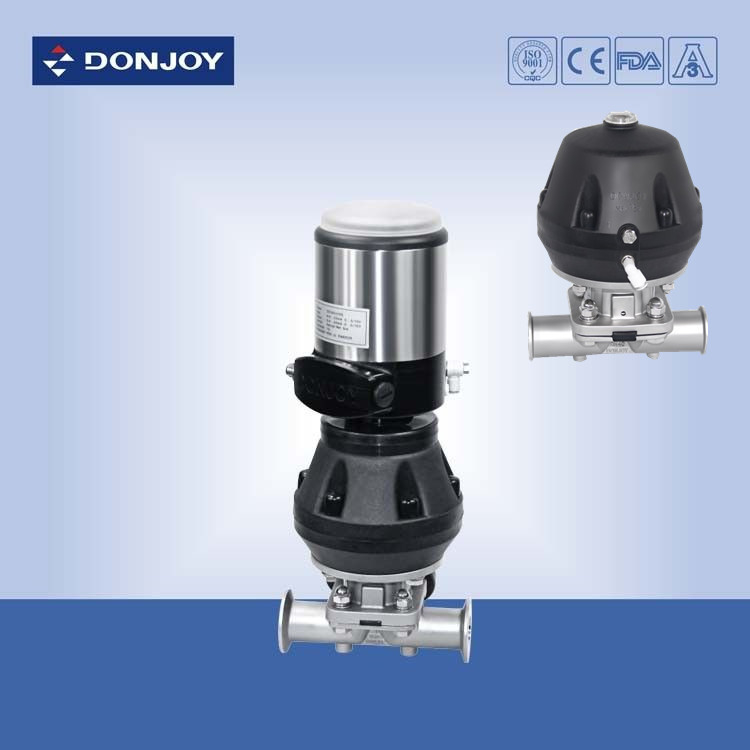

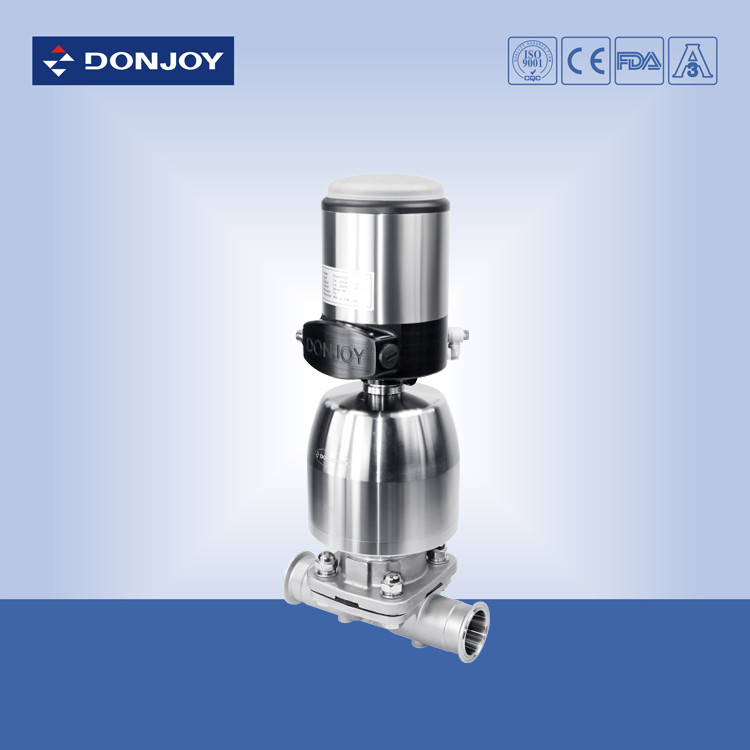

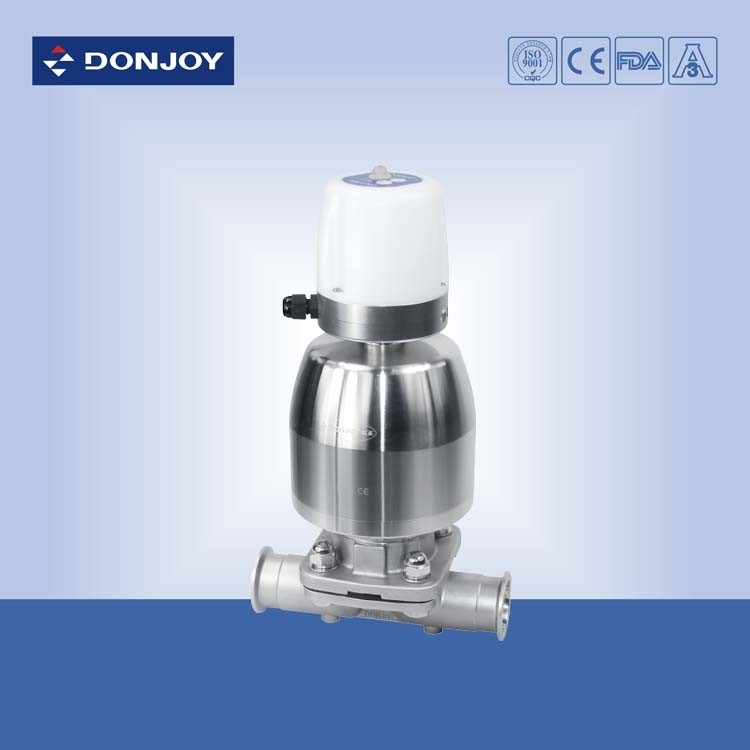

Positioner and C-TOP
Product drawing
Product display
Tag: Donjoy diaphragm valve, Sanitary valve, Donjoy valve.
