316L Sanitary Diaphragm Valve Regulating Valve with positioner , C-TOP 1'' - 4''

316L Sanitary Diaphragm Valve Regulating Valve with positioner , C-TOP 1'' - 4''

    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO. VGM0Q1 / NO.ZZ-K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Diaphragm Regulating Valve With Positioner C-TOP Materials: SS316L / 1.4404
    Size: 1'' - 4'', DN20 - DN100 Operation: Pneumatic
    Power Supply: DC 24V Actuator: Plastic And Stainless Steel
    Signal Input: 0/4-20mA , 0-5 / 10V (Standard) Feedback: 4-20ma , 0-10V (Option)
    High Light:

    diaphragm check valve

    ,

    sanitary sample valve

    316L Sanitary Diaphragm Valve Regulating Valve with positioner , C-TOP 1'' - 4''

    Applications
    Manually operated diaphragm valve is specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
    The valve is excellent for flow control as well as for open/close duties.
    The diaphragm valve is better in feature of flow in comparison with other valves. It si eaiser to clean up and better to process the sunstance with particles. The phenomenon of air pocket is rare during application of flow control.

     Specifications

    Product Name:

    Sanitary Diaphragm Valve Regulating Valve with positioner
    , C-TOP

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM
    /Two pieces PTFE+EPDM

    Max Working Pressure:

    6-8 Bar(depending on diaphragm)

    Max.WorkingTemperature:

    -30 to 150 degree C

    Availably  size:

    1''-4'', DN20-DN100

    Availably connection:

    Clamp / weld / thread / special connection

    Availably standard:

    3A / BPE / DIN / ISO / IDF

    Operated:

    Manual,Pneumatic

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Valve body:

    Forging or casting

    Configuration:

    Flexible with various valve seat


    Various configuration of Diaphragm valve
    1.      Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
    2.      Diaphragm valve with Control Unit (C-Top)
    3.      Valve position Regulator
    4.      Position Sensor Module
    5.      Plastic Handle
    6.      Stainless steel handle
    7.      Stianless steel acutor
    8.      Electric Diaphragm valve
    9.      Plastic Acutor
    10.    Body: Casting / Forging

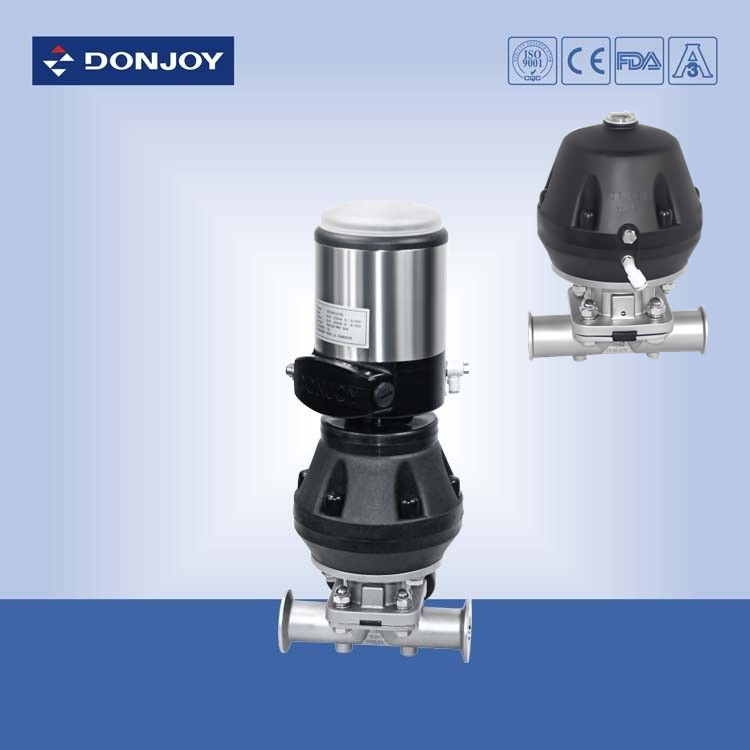

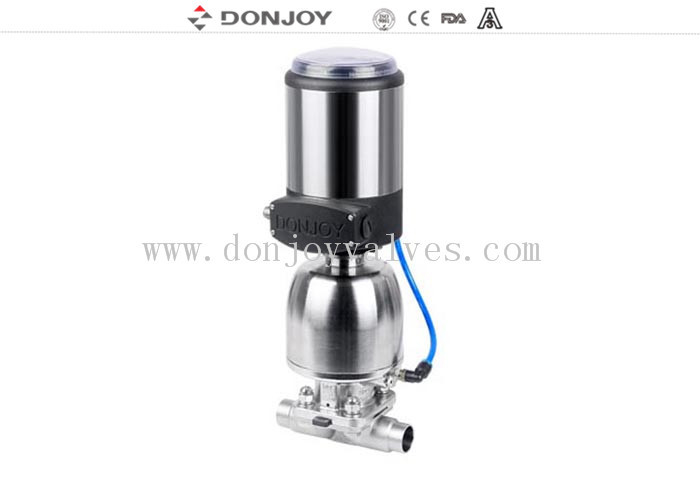

    Positioner and C-TOP
    316L Sanitary Diaphragm Valve Regulating Valve with positioner , C-TOP 1'' - 4'' 0

     316L Sanitary Diaphragm Valve Regulating Valve with positioner , C-TOP 1'' - 4'' 1

     Product drawing

     316L Sanitary Diaphragm Valve Regulating Valve with positioner , C-TOP 1'' - 4'' 2

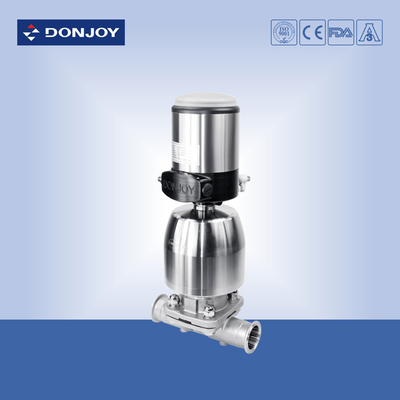

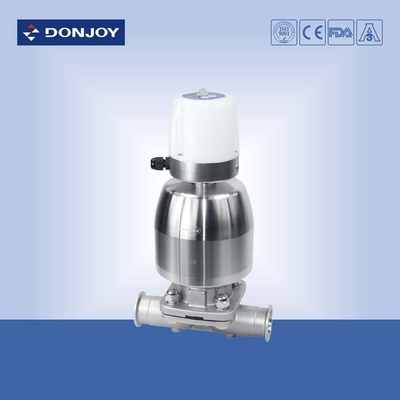

    Product display


    316L Sanitary Diaphragm Valve Regulating Valve with positioner , C-TOP 1'' - 4'' 3
