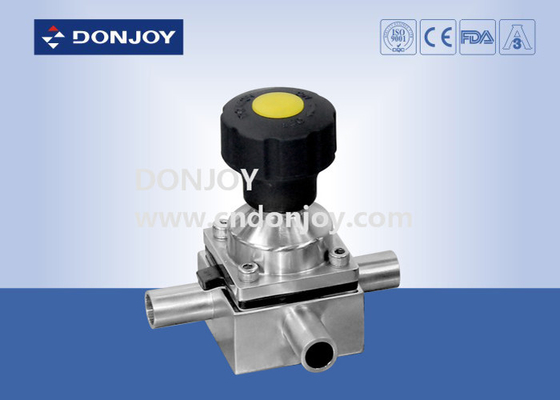

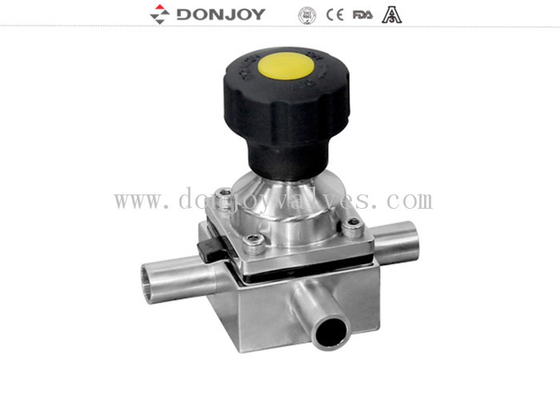

    Product Name: Manual Welded Diaphragm Valve Materials: SS316L / 1.4404
    Size: 1''- 4'', DN25 - DN100 Operation: Manual Operation
    Connection: Welded Ends Gasket: EPDM + PTFE
    Structure: With Plastic Hand Wheel Port: 3 Ports
    High Light:

    sanitary sample valve


    3 way diaphragm valve

    SS 316L plastic manual mini three way diaphragm valve with 3 ports, Welded Ends

    Product Name:

    SS 316L plastic manual mini three way diaphragm valve with 3ports, Welded Ends

    Valve Body Material:

    1.4404/316L/ASME BPE 316L/1.4435(forging body)

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces

    Max Working Pressure:


    Max.Working Temperature:

    -30 degree to 130 degree C

    Available size:

    1''-4'', DN25-DN100

    Available connection:

    Clamp/welding/thread/special connection


    manual plastic handle wheel

    Handle wheel:

    Stainless steel or plastic is optional

    Available standard:




    Availably structure:

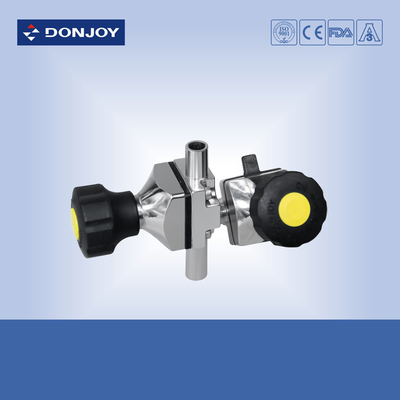

    Straight, tee, U-type, tank bottom


    Smart valve positioner / C-TOP control / position sensor


    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Packaging Details:

    Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.

    Delivery details:

    Usually within 20 days after receiving T/T down payment.


    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
    The valve is excellent for flow control as well as open/close control.
    The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.

    Pneumatic Operation

    1. Didaphragm valve with Positioner/Process Controller(IL-TOP)
    2. Diaphragm valve with Control Unit(C-Top)
    3. Valve position Regulator
    4. Position Sensor Module
    5. Stainless steel actuator
    6. Plastic Actuator
    Electric Operation
    7. Electric Diaphragm valve
    Manual Operation
    8. Plastic Handle
    9. Stainless steel handle
    Valve Body Material
    10. Body: Casting / Forging


    Operating Principles

    1. The diaphragm provide the body seal as well as the seat seal. There are no paths to the outside environment, so it suitable for aseptic processes

    2. When the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body.When the pressure plate moves the diaphragm flexes and is forced down onto the seat area in the centre of the body thus closing of the flow path through the body.

    3. The inter relationship of body to the pressure plate prevents over compression of the diaphragm

    4. The valve can be manual operation and pneumatic operation control tops of solenoid valves


    Cetificate of Diaphragm valve

    1.All synthetic resin and additive are comply with FDA Certification.

    2.Material chemical composition, physical properties and manufacturing process are documented.

    3.3-a consistency the authentication


    5.EN 10204-3.1


    Diaphragm of the valve

    1. EPDM+PTFE( Adhesive)Diaphragm tablet have high chemical resistance, high stability, good flexibity, long life, high sealing, no code degeneration, and not effected by temperature fluctuations excellent performance, whether it is thermal cycle, cold cycle, or steam disinfection system.

    Sepcification: 1-3", DN20-DN80

    Temperature :-20 to 120degree


    2. EPDM+PTFE (Seperate) It can reduces the diaphragm tolerance and proling the service life of the diaphragm

    Sepcification: 1-4", DN20-DN100

    Temperature :-20 to 150degree


    3 Single seal (EPDM/SILICONE/FPM), Rubber diaphragm embedded a layer of vulcanized fiber layer enhance its mechanical properties, then diaphragm in pressure and temperature hase high seal stability, reinforcing fiber hardening in stainless steel bolt, so as to ensure better rubber and metal bond together. So it is suitable for use in vacuum environment.

    Sepcification: 1-4", DN20-DN100

    Temperature :-10 to 120degree


    4. Mini type diaphragm gasket ( EPDM, SILICONE,FPM,  EPDM+PTFE)

    Sepcification: 1/4"-3/4", DN6-DN15

    Temperature :-20 to 150degree


    Surface Treatment :

    1.For mechanical polished : Inner Ra<0.5μm, Outside : From 1-4" Sandblasting,  Below 1" with mirror polished


    If Need more inforamtion, please contact us directly.


    Tag: Donjoy Valves, Diaphragm valve, BPE Valve
