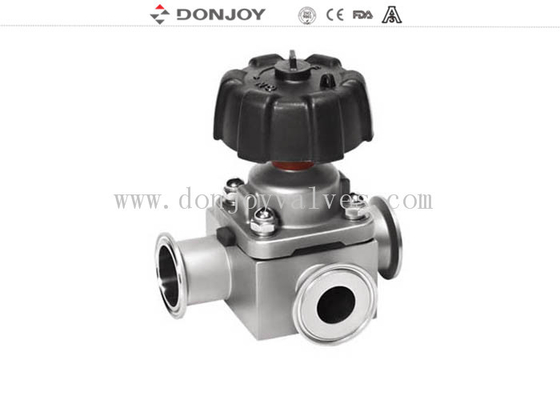

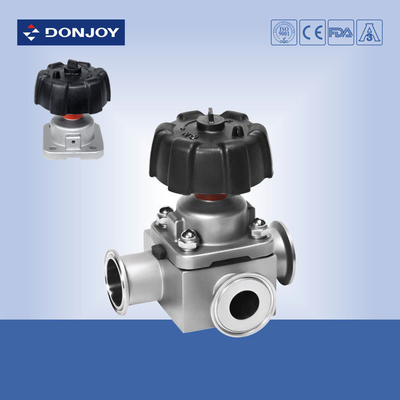

1 inch - 4 inch Manual T type tee sanitary diaphragm valve with Clamp Ends 316L

1 inch - 4 inch Manual T type tee sanitary diaphragm valve with Clamp Ends 316L

diaphragm check valve

sanitary sample valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.T-K

Contact Us

Request A Quote
Product Details
Product Name:
Manual T Type Tee Sanitary Diaphragm Valve
Materials:
SS316L / 1.4404
Size:
1" - 4'',DN25-DN100
Operation:
Manual Plastic And Pneumatic Positioner
Connection:
Clamped / Welding / Thread / Flange
Gasket:
EPDM + PTFE / Double Piece Of PTFE + EPDM
Structure:
T Type Tee
Port:
Three Ports
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

1 inch - 4 inch Manual T type tee sanitary diaphragm valve with Clamp Ends 316L

Specifications

Product Name:

1 inch - 4 inch Manual T type tee sanitary diaphragm valve with Clamp Ends 316L

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:

10Bar

Max.WorkingTemperature:

150 degree C

Availably  size:

1”-4”, DN25-DN100

Availably connection:

Clamp/weld/thread/special connection

Operated:

Manual,Pneumatic

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic etc

Available structure

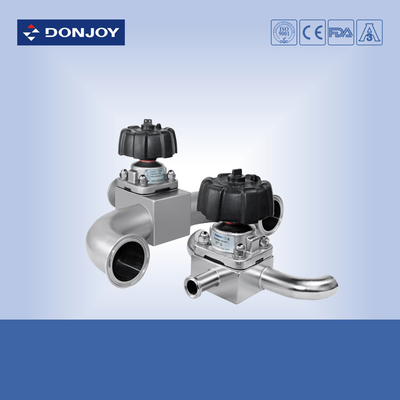

Straight, tee, U-type, tank bottom

port

three ports

GMP structure:

G1.1 / G1.2 / G2.1 / G2.2

SAP structure:

S1.1 / S1.2 / S2.1 / S2.2


Applications

Diaphragm valves, no matter be operated manually or pneumatically, are specialized to be used in the sanitary and aseptic process in pharmaceutical industry.
The valve is excellent for flow control as well as for ON / OFF duties.
Compared with other valves, the diaphragm valve is more easilier to be cleaned. It could process the material with particles better. And the phenomenon of cavitation is less than before during the application of flow control.

Description

Valve Body
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.

Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

Description

Various configuration of Diaphragm valve
Pneumatic Operation
1. Didaphragm valve with Positioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Stainless steel actuator
6. Plastic Actuator

Electric Operation
7. Electric Diaphragm valve

Manual Operation
8. Plastic Handle
9. Stainless steel handle

Valve Body Material
10. Body: Casting / Forging

Product display
1 inch - 4 inch  Manual T type tee sanitary diaphragm valve with Clamp Ends 316L 0
