Product Details
Product Name:
Multiport Diaphragm With 3 Control Valve And 5 Port
Operation:
Manual And Pneumatic All Can Be Configured
Size:
1 Inch To 4 Inch, DN25 To DN100
Export Connection Mode:
Clamp, Welding, Special Interface
Valve Body:
Casting Body
Standard:
DIN32676/DIN11850-1/2, ASME BPE/ASTM 269
Type:
M-53A
Design:
Minimum Dead Angle
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Type M-53 Sanitary inox multiport diaphragm with 3 control valve and 5 port with 3A and FDA certificate
Applications
Diaphragm valves, manually or pneumatically operated, are specifically designed for use on
hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as open/close control.
The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.

Specifications

Product Name:

 Type M-53 stainless steel multiport diaphragm with 3 control
 valve and 5 port

Valve Body Material:

 SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces
PTFE+EPDM

Max Working Pressure:

6Bar to 10 Bar(depending on diaphragm

Max.Working Temperature:

-30 to 120 degree C

Availably  size:

1''-4'', DN25-DN100

Availably connection:

Clamp/weld/special connection

Availably standard:

3A/BPE/DIN/ISO/IDF

Operated:

Manual,Pneumatic

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Inlet of fluid

tank bottom filling

Valve body

casting body or forging body are available

Packaging details

Bubble pack for each valve, outside carton or plywood cases

Delivery details

Usually within 20 days after receving T/T down payments


Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit (C-Top)

3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor

10. Body: Casting / Forging
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.

Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

 Product display

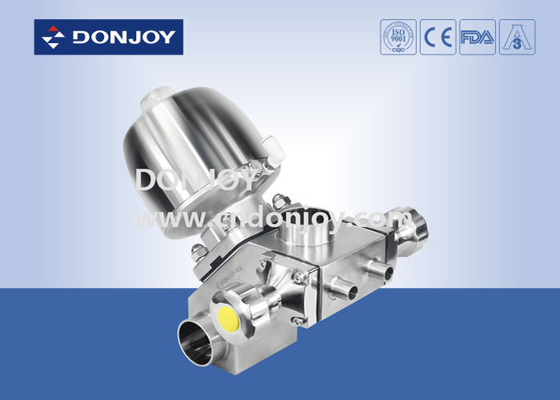

 Type M-53 Sanitary inox multiport diaphragm with 3 control valve and 5 port with 3A and FDA certificate 0

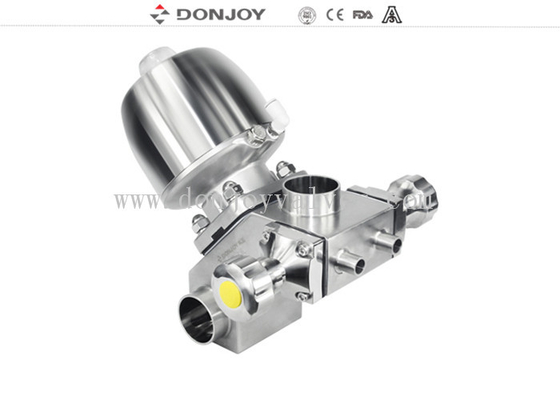

Type M-53 Sanitary inox multiport diaphragm with 3 control valve and 5 port with 3A and FDA certificate 1

Diaphragm :
Single Seal : For EPDM the temperature range about -10 to 120degree, And it is suitable for use in vacuum environment
EPDM+PTFE (Adhesive) : Temperature is the same with Single sea, But For the PTFE diaphragm with high chemical resistance, High Stability, Good Flexibility, Long life,high Sealing, No cold Degeneration.It also can use for Steam disinfection System.
EPDM+PTFE(Separate), The Max Temperature can suffer 150 degree can can work in bad conditions
And when you asked the quotation and didn’t mark the request, we will provide the EPDM+PTFE(Adhesive) one
About the treatment : If for mechanical polished : Ra about 0.3 um , If electric polished : Ra about 0.25um. Also can according customer request

Tags : Diaphragm valves, Medecial Valves, Sanitary valves.
