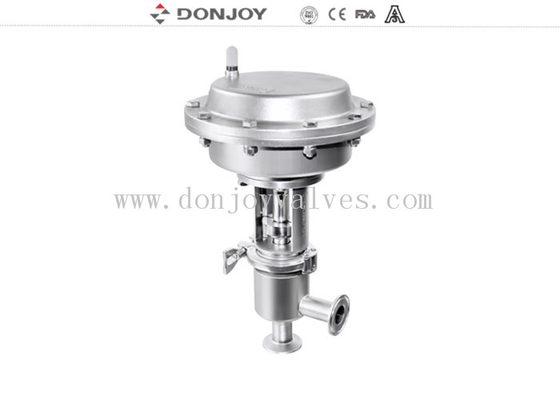

Thin film Pneumatic Aseptic Reversing Seat Valve DN25-DN100 with SS316L

Thin film Pneumatic Aseptic Reversing Seat Valve DN25-DN100 with ss304 ss316L

Description

Membrane pneumatic actuator is a vertical linear actuator.The actuator has the technical characteristics of flexible configuration and combination,fast opening and closing speed,all stainless steel material,etc.The actuator can be applied to globe valve,seat valves etc,various linear stroke valves.Various automatic control functions can also be configured,such as valve position feedback,valve control unit,process controller,valve intelligent positioner,etc.

Quick detail
Aseptic Reversing Seat Valve
Aseptic Regulating Seat Valve
Aseptic divert Seat Valve

Description
Thin-film Pneumatic Aseptic Reversing Seat Valve has all the functions and features of standard divert seat valves.

Technical advantage:
bear higher pressure, actuator height is shorter,can resist water hammer.also can be assembled intelligent positioner from sideway.

Specifications

Characteristics
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Optional
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double-acting and single acting
Inductive position sensor
C - TOP control head
Position sensor

Function configuration

1) Basic type:pneumatic actuator

2) Pneumatic actuator + manual device

3) Pneumatic actuator + feedback device F-TOP-1671

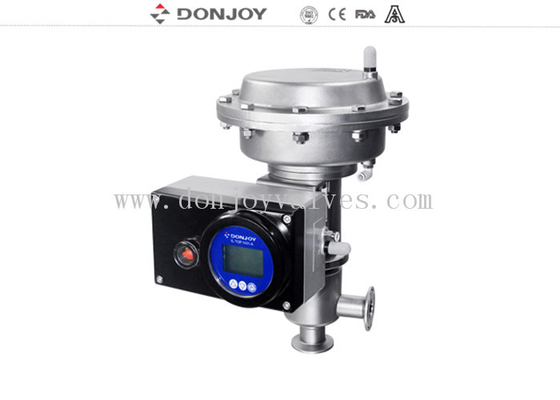

4) Pneumatic actuator + valve positioner IL-TOP-1441

5) Pneumatic actuator + valve positioner IL-TOP-1891

6) Pneumatic actuator + manual device + valve positioner-1441

7) Pneumatic actuator + split valve positioner IL-TOP-1441
