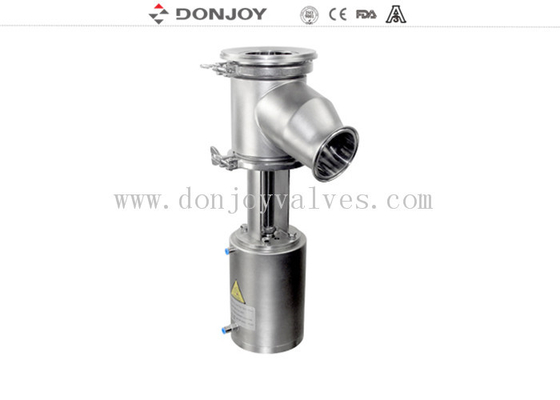

DONJOY Pneumatic internal open Tank Bottom Valve with clamp connection

Large Image : DONJOY Pneumatic internal open Tank Bottom Valve with clamp connection

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	Carton, Wooden Case
Delivery Time:	accoding to order
Payment Terms:	T/T,L/C, Credit Card
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Internal Open Tank Bottom	Power:	Pneumatic
Material:	SS304/316L	Size:	1"-4"; DN25- DN100
Pressure:	Medium Pressure	Media:	Food, Beer, Beverage, Dairy Etc.
Connections:	Clamp, Weld	Gasket:	EPDM/ VITION/ HNBR
Highlight:	flush bottom valves , single seat valve

DONJOY Pneumatic internal open Tank Bottom Valve with clamp connection

Description

Product Name:	Pneumatic internal open Tank Bottom Valve with clamp connection
Valve Body Material:	SS304/316L
Working Pressure:	10 Bar / 145PSI
Max.Working Temperature:	-10℃to +120℃(EPDM) 14°F 248° F+140(SPI, max. 30min) 248°F
Available size:	1"-4" DN25-DN100
Available connection:	DIN, Clamp, SMS, RJT, IDF...Flange
Operated:	Air/Spring, Air / Air
Available structure:	Flange type, 90℃ elbow type
Application scope:	Dairy,food processing, beverage, pharmacy, cosmetic, etc
Feature:	Suitable for good mobility medium
Design:	Dead conner minimized design

Operation principle
1. Operated by Air/Spring, Air / Air
2. Compressed air push shaft to open and close valve
3. Valve structure: Valve seat opens construction inside so that it can avoid pushing when pipeline is over pressure
4. Parts in contact with the products: AISI 316L,AISI 304
5. Other parts: AISI 304
6. Gaskets (standard): EPDM according to FDA 177.2600
7. Internal surface finish: Ra≤0.8μm
8. External surface finish: Mirror polish

Design and features
1. 3A sanitary design
2. Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing

Applications
The tank bottom seat valve is a pneumatically operated single seat valve, assembled at the bottom of tank, used in dairy,food processing, beverage, pharmaceutical and fine chemical industries.

Technical data

DONJOY Pneumatic internal open Tank Bottom Valve with clamp connection 0

DONJOY Pneumatic internal open Tank Bottom Valve with clamp connection 1

Product display

DONJOY Pneumatic internal open Tank Bottom Valve with clamp connection 2

DONJOY Pneumatic internal open Tank Bottom Valve with clamp connection 3

DONJOY Pneumatic internal open Tank Bottom Valve with clamp connection 4
