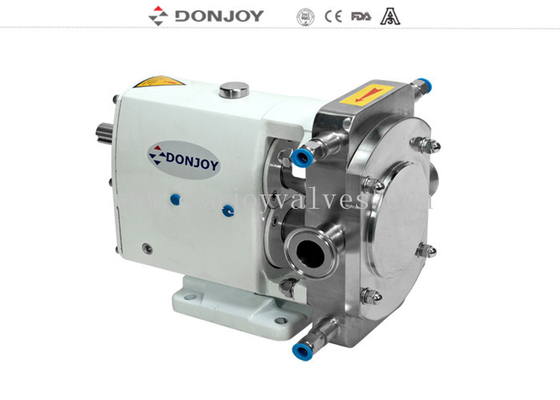

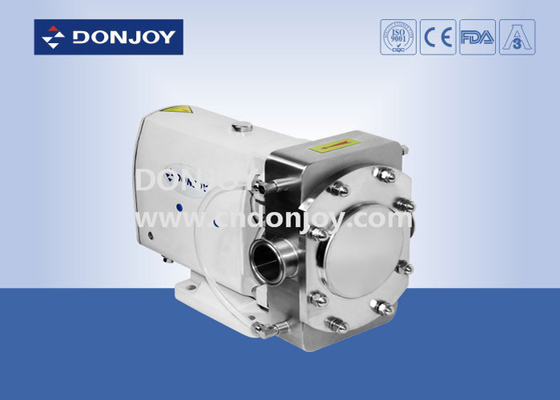

Chocolate and flow control TUL-30 bare shaft lobe rotary pump with flush seal
Quick Detail
1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
2. Single seal, Double Mechanical Seal
3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
4. Gasket: FPM(Viton),NBR, EPDM
5. Relief valve at front cover r external by –pass
6. Built-in safety valve lobe pump
7. End-face heat jacket lobe pump
8. Complete heat jacket lobe pump
9. Vertical TUR Series or Horizontal TUL Series
10. Assembly on a stainless steel baseplate
11. Connection: Clamp (DIN32676,3A,ISO), Threaad (DIN,SMS,RJT,IDF), Butt weld, Flange
12. Motor Type B5 motor frequency 50HZ, 60HZ
13. Voltage (v) 220-240, 360-400, 420-460, 630-690
Specifications
|
Product Name:
|
SS316L Hygenic TUL-30 Bare shaft lobe rotary pump with Flush Seal for chocolate
|
|
Material:
|
SS304 / SS316L / 1.4301 / 1.4404
|
|
Seal Material:
|
SIC / SIC / EPDM (Standard, FDA approval)
|
|
Max. Flow:
|
62m3/h / 395 GPM
|
|
Max.pressure:
|
12bar/ 174PSI
|
|
Max. working temperature:
|
150 C / 302 F
|
|
Max. rev:
|
1450 rmp
|
|
Rotor Type:
|
2-leaves, 3-leaves, butterfly, single butterfly
|
|
Mechanical seal:
|
SIC / SiC / EPDM (Standard)
|
|
Voltage:
|
110V, 220V, 380V
|
|
Motor:
|
ABB,SEW, 50hz/ 60hz
|
|
Surface treatment:
|
Inner polished and Sandblast outside
|
|
Availably connection:
|
Clamp, Thread Butt weld, Flange
|
|
Availably standard:
|
DIN, SMS, 3A, RJT, ISO / IDF
|
|
Operating mode:
|
Driven by electic power
|
|
Certificate:
|
3A/54-02 (1580), PED/97/23/EC,
FDA.177.2600, ISO9001/2008
|
|
Application scope:
|
Dairy, food, beverage, pharmacy, cosmetic, etc
|
| Model |
TUL / TUR 20 - 125 |
|
Packaging Details:
|
Plywood case or customerized.
Or as per the request of customers
|
|
Delivery details:
|
Usually within 20 days after receiving T/T payment
|
Design and Features
1. Horizontal TUL, Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace
5. Applied to CIP Cleaning and sic Sterlization
6. according to USA 3A Standard
Typical product Applications
1.food and drink:Soups, Stews,Tomato paste, Vegetables, Dressings, Chocolate, Fats&oils, cream Fillings,Brewery, Wort, Soft/fruit Drinks, Meat Processing
2.Dairy :Cream, Milk, Cheese curd and whey, cottage cheese, yogurt
3 Pharmaceutical/Cosmetics: Pill pastes, syrups, extracts, slurries, Face creams&lotions, hair styling Gel & liquids.Dyes& alcohols, Soaps, Cosmetics
4.Chemical/Industrial: Solvents, Paints, Fules, Resins, Polymers & Sludges, Oi& Lubricants
5.Two direction reversible desig
Pump inlet & Outlet Connection
Drawing of Lobe pump
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
