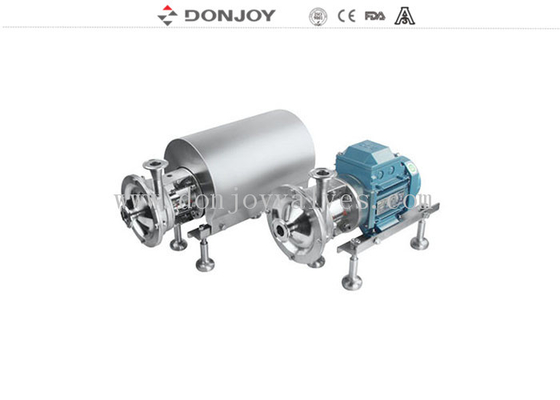

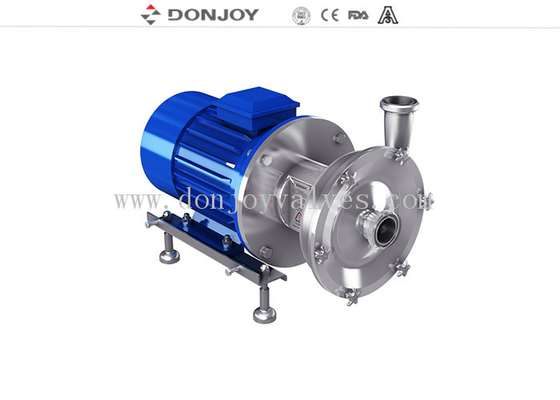

NBR Double Seal SS304 High Purity Centrifugal Pump

NBR Double Seal SS304 High Purity Centrifugal Pump

NBR Double Seal SS304 High Purity Centrifugal Pump

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: LX Model

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Materials: SS304 / SS316L Operation: ABB Motor
Mechanical: Single / Double Seal Connection Way: Thread, Clamp, Flange, Welding, Union
Power: 380V/ 50HZ, 440V/60HZ Medium: Beer / Drug / Beverage Etc.
High Light:

High Purity Centrifugal Pump

,

SS304 High Purity Pumps

,

Double Seal High Purity Pumps

Stainless steel High purity centrifugal pump with open impeller and small capacity
Description
 1. Mini centrifugal pump LX-05 ,small flow, small power, high cleanliness, small volume and

other technical characteristics.
2. It is applied to various working conditions during low flow demand, such as biopharmaceutical, fine chemical industry, beer beverage, laboratory, etc.

3. Certification: 3-A-02-11 NO.1759, FDA 177.2600
                             CE-MD/06-42 NO.705201616101-00

Specifications

Product Name:Centrifugal pump, food pump
Pump Body Material:SS304 / SS316L / 1.4301 / 1.4404
Seal Material:EPDM (Standard, FDA approval) FPM (Viton) and NBR
Max. Flow:5 m³/h
Max. Speed:3000 min-1
Max. Head:20 M
Max. power1.1kw

Min. power

0.37kw

Temperature Range:-30°C-130 °C
Motor:ABB / domestic / SIEMENS
Motor Frequency:50HZ, 60HZ
Surface treatment:Inner polished and Sandblast outside
Application structure:LX
Availably connection:Tri-Clamp, Thread, Flange
Availably standard:DIN, SMS, 3A, RJT, ISO/IDF
Surface treatment:

Ra≤0.6μm , EP=Ra 0.4μm

Low discharge option :Low discharge / diaphragm valve / ball valve / butterfly valve
Application scope:Dairy,food, beverage, pharmacy, cosmetic, etc
Level:Sanitary grade


 Feature
Motor: ABB / domestic / SIEMENS Motor ( optional )
 Availabe connection: tri-clamped, threaded and Flanged.
 Available standard: DIN, SMS, 3A, RJT, ISO / IDF
 Sealing type: machanical seal
 Function: flow control

Applications
 1.  This pump is manufactured in stianless steel and with a shrouded motor.
2.  Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.


Advantange
Donjoy LX Seeries centrifugal pump, not only optimize the internal structure, such as impleller design, dead angle treatment, mechanical seal pressure balance design and the mechine seal is completely in the flushing area, but also optimize external sanitation of the pump, which makes its internal absolute sanitation and external reduction of dead angle. Since there is no dead angle area, it is easy to be cleaned by CIP and sterilized by SIP. In addition, dj-lx series pump, has kept the maximum flexibility of combined applications, for example, the pump outlet angle can be arbitrarily adjusted from 0° to 135 °, the pump cover adopts hand whell nut, which keeps high efficiency in the manitenance of the pump and relacement of machine seal. and reduces the highly professional requirements to maintenance personnel without special tools. Therefore, the DJ-LX series centrifugal pump has achieved the goal of high efficiency, health, high reliability and low cost, making it a high performance pump .

Packaging Details
Plywood case or customerized. Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Performance graph
Mini Centrifugal pump comprehensive performance graph

NBR Double Seal SS304 High Purity Centrifugal Pump 0

Tag : Open impeller pump, Centrigugal pump, food pump
