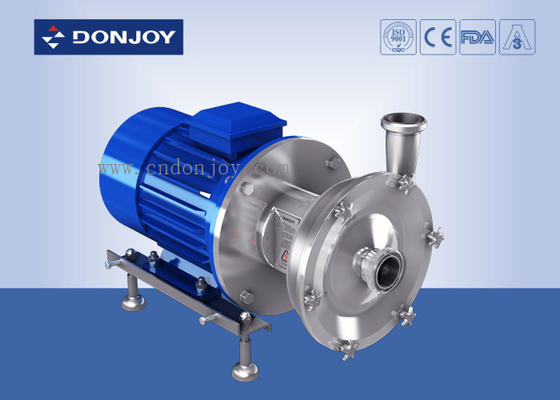

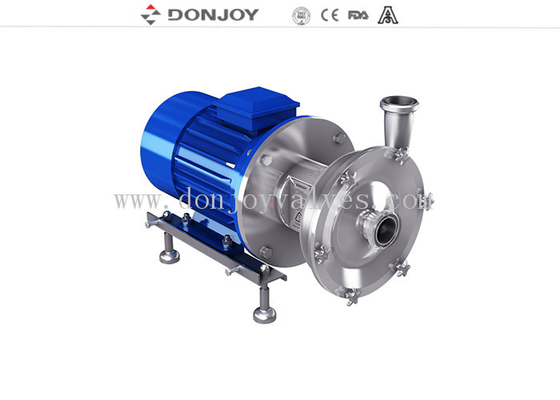

Sanitary Centrifugal High Purity Pumps Fit Cosmetic With Open Impeller

Sanitary Centrifugal High Purity Pumps Fit Cosmetic With Open Impeller

    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: LX Model

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product: Sanitary Centrifugal High Purity Pump Operation: ABB / Domestic Motor / SIEMENS
    Mechanical: Flush Mechanical Seal / Doulbe Seal Inlet: 2" Thread
    Outlet: 1.5" Thread Outside: With Cover
    High Light:

    lobe rotary pump


    high pressure pumps

    sanitary centrifugal high purity pump for comestic with open impeller

     1.  Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
     2.  Gasket: viton / NBR
     3.  Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
     4.  Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ



    With the change of market demand and the development of technology, we hope to set up new

    technical standards in the field of high clean pump, for this reason, we have made a series of

    technology upgrades and optimization with the help of the Fluid science software analysis and

    our more than 20 years experience in manufacturing and engineering application.


    Donjoy DJ-LX series Centrifugal pump ,not only optimize the internal structure, such as

    impeller design,dead angle treatment,machine seal pressure balance design and the

    machine seal is completely in the flushing area ,but also optimize external sanitation of the

    pump , which makes its internal absolute sanitation and external reduction of dead Angle.

    Since there is no dead Angle area, it is easy to be cleaned by CIP and sterilized by SIP.


    In addition, DJ - LX series pump, has kept the maximum flexibility of combined applications,

    for example, the pump outlet angle can be arbitrarily adjusted from 0 ° to 135 °, the pump

    cover adopts hand wheel nut, which keeps high efficiency in the maintenance of the pump and

    replacement of machine seal, and reduces the highly professional requirements to maintenance

    personnel without special tools. Therefore, the DJ-LX series centrifugal pump has achieved the

    goal of high efficiency, health, high reliability and low cost, making it a high performance pump.



     Product Name:

     Sanitary centrifugal high purity pump

     Valve Body Material:

     SS304 / SS316L / 1.4301 / 1.4404

     Seal Material:

     EPDM (Standard, FDA approval) FPM(Viton) and NBR

     Max. Flow:

     150 m3/h

     Max. Speed:

     3600 min - 1

     Max. Head:

     70H (m)

     Max. Working Pressure:

    7 bar / 99 PSI

     Max. Working

     120 °C



     Motor Frequency:

     50HZ, 60HZ

     Surface treatment:

     Inner polished and Sandblast outside

     Available connection:

     Tri-Clamp, Thread, Flange

     Available standard:




     Low discharge option :

     Low discharge / diaphragm valve / ball valve / butterfly valve


     3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

     Application scope:

     Dairy,food, beverage, pharmacy, cosmetic etc

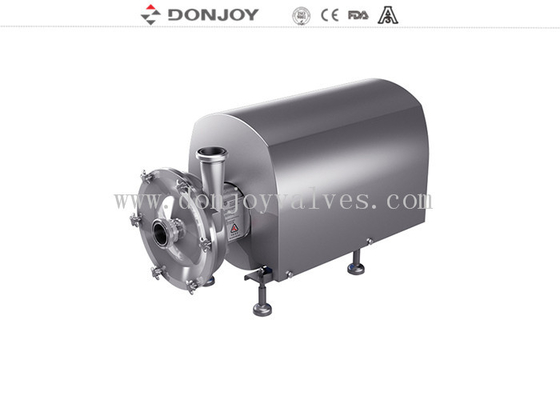

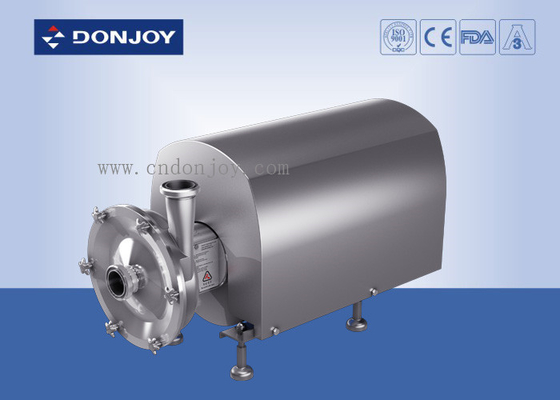

     With trolley

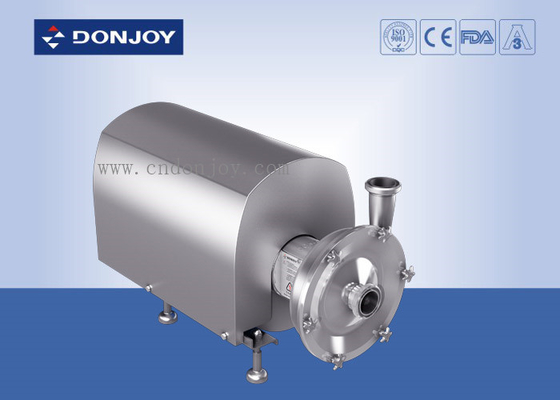

     Be covered


    Technical Advantages:

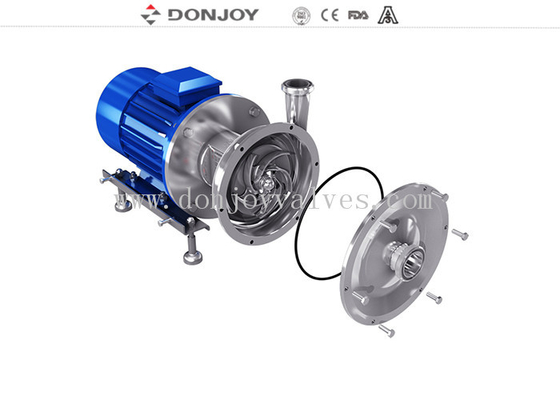

    Maintenance disassembly and installation can be completed without professional staff and special tools

    Initial use of installation debugging, even if a short reverse rotation will not be damaged

    The impeller and shaft are connected by the key groove, the impeller and the machine seal are

    limited and fixed by the petalCompatible with single and double machine seal, only need to change machine seal.


    1. This pump is manufactured in stianless steel and with a shrouded motor.
     2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.

     Performance graph
    LX Centrifugal pump comprehensive performance graph
    Sanitary Centrifugal High Purity Pumps Fit Cosmetic With Open Impeller 0
