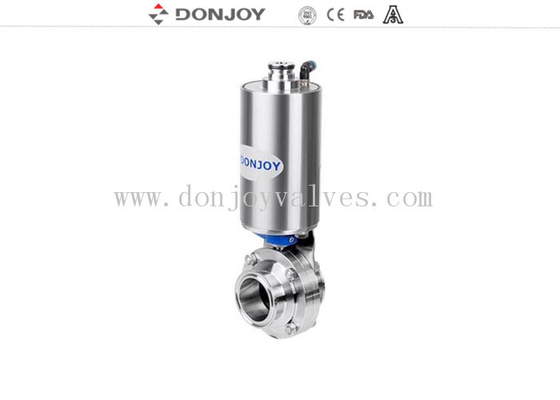

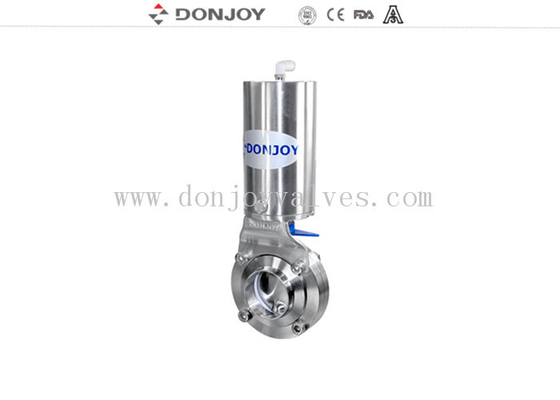

DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator

DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator

  • DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator
  • DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator
DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box or wooden box
Delivery Time: 5-30 working days
Payment Terms: T/T, LC, Credit Card
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Butterfly Valve And Position Sensor Materials: 304/316L
Size: DN10-DN300, 1/2"-12" Operation: Actuator
Connection: Welding
High Light:

stainless butterfly valves

,

pneumatic butterfly valve

DN10-DN300 Sanitary welding butterfly valves with Pneumatic Acuator



Technical Parameters



Steel material

Product wetted steel parts

AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material

inspection report

Other steel parts

AISI 304

Seal material

Standard

EPDM

All seal materials comply

with FDA 21CFR117.2600

Options

VMQ / Viton (FPM)

Pressure

Working pressure

≤145psi (10bar)

Supply pressure for air actuator

70 ~ 116psi (5 ~ 8bar)

Temperature

Working temperature

EPDM: 14 ~ 248°F (-10 ~ 120°C)

VMQ (Silicone): -58 ~ 356°F (-50 ~ +180°C)

Viton (FPM): -22 ~ 428°F (-30 ~ +220°C)

Sterilization temperature

150°C (302°F), Max. 20 min

Surface treatment

Inside surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Outside surface treatment

Ra 32 ~ 64µin (0.8 ~ 1.6µm)

Connection

End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

Actuator

Normally Closed (NC) - Air to open and spring to close;

Normally Open (NO) - Air to close and spring to open;

Air to Air (AA) - Air to open, air to close.

Sanitary Butterfly Valves
Sanitary butterfly valve is also called as hygienic butterfly valve which is a type of flow control device, used to make a fluid start or stop flowing through a section of pipe.


Sanitary butterfly valves uses:
Donjoy sanitary butterfly valves are widely used to the chemical industry, petroleum, metallurgy, plumbing, food, bio-pharmaceutical and chemical industries;Donjoy stainless steel butterfly valve, sanitary fittings are high-quality products, can be used for dairy, pharmaceutical, beer, beverage, edible oil and other industries to meet their professional requirements.
Donjoy sanitary butterfly valves advantages:
Donjoy sanitary butterfly valve has many advantages such as removable connection, simple structure and easy maintenance;
Donjoy butterfly valve rubber seals and valve plates are high quality pieces to ensure the use performance and service life;Donjoy valves can provide valve body and disc materials such as AISI 304 or AISI 316L, 304Land 316 materials, automated or manual operation valve according to your requests.


Application:
DONJOY is sanitary pneumatic butterfly valve actuator with butt-weld ends, which is widely used in process piping systems for isolation and control. butterfly valve operates automatically.


Specification:
Sizes available: 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12") DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150,DN200, DN250, DN300)
Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Max. working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12".
Operation: SS304 vertical actuator, NC (normally close) / NO (normally open) / AA (air to air) type for choose from.
Air supply pressure: 70-116psi (5-8bar)
Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
End connections: butt-welded / butt-welded.
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.


Options:
Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.The seat and gasket can be EPDM, VMQ (Silicone) or Viton (FPM), all complying with FDA 21CFR177.2600.End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line or others upon request.Handles: 4-position pull handle; multi-position handle with plastic cover or in pure
stainless steel.
Actuators to reach automatic operation:
pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.
NC operated: normally closed (fail closed)---air to open, spring to close
NO operated: normally open (fail open)---air to close, spring to open
AA operated: double-acting---air to open, air to close
Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE

DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator 0 DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator 1 DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator 2

  •





Display

DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator 3

DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator 4

DN10 - DN300 Sanitary Welding Butterfly Valves With Pneumatic Actuator 5
